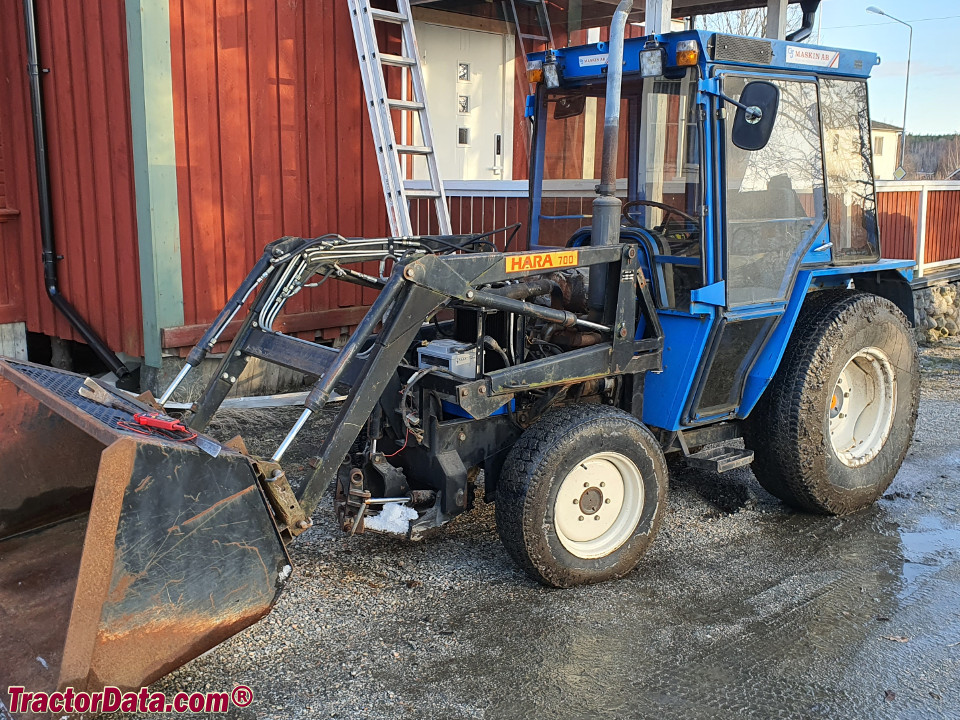

Iseki TE4270
Iseki TE4270 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2249 to 2447 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Wet disc brakesReference
Open operator station.Reference
Engine
Isuzu 1.3L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)22.1 kWReference
Engine (net)19.8 kWReference
Isuzu E3AE1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 86 mmReference
Power (net)19.8 kWReference
Power (gross)22.1 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Clutchdry discReference
Three gears (1-3), plus reverse (R), in three ranges (L/M/H) with additional creeper range.Reference
PTO & Hydraulics
Pump flow20.8 lpmReference
Rear TypeJISIReference
Controlposition control with optional draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2280Reference
Engine RPM1000@2540Reference
Dimensions
Wheelbase165 cmReference
Weight2249 to 2447 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.2-24Reference
Length294 cmReference
Width132 cmReference
2WD Height198 cmReference
4WD Height202 cmReference
2WD Weight1020 kgReference
4WD Weight1109 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance34 cmReference
2WD Front tread96 to 105 cmReference
4WD Front tread104 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
