Tractor · Unverified

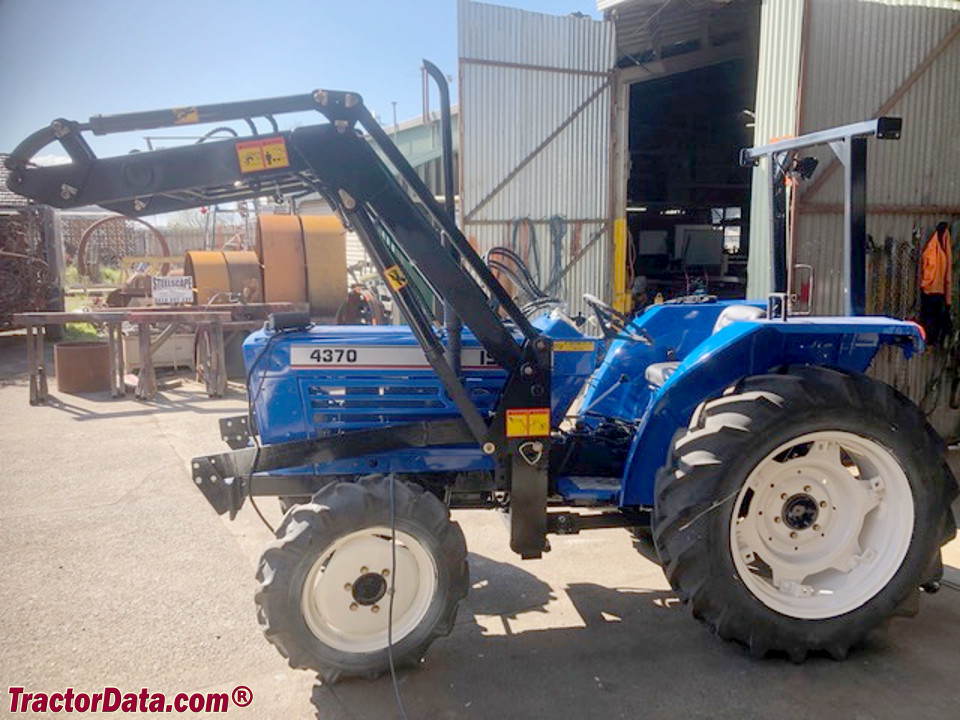

Iseki TE4370
Iseki TE4370 — Compact Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
2932 to 3208 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Steeringpower assistReference
Open operator station.Reference
Variants
TE4370T2WDReference
TE4370F4WDReference
Engine
Isuzu 1.8L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine27.6 kWReference
Isuzu 4FB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke84 x 82 mmReference
Power27.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.1 LReference
Exhaust valve clearance0.254 mmReference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Oil capacity45.0 LReference
Three gears (1-3), plus reverse (R), in three ranges (L/M/H) with additional creeper range.Reference
PTO & Hydraulics
Pressure142.0 barReference
Total flow29.1 lpmReference
Steering flow12.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1230 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Weight2932 to 3208 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length321 cmReference
Width181 cmReference
Height199 cmReference
2WD Weight1329 kgReference
4WD Weight1455 kgReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
