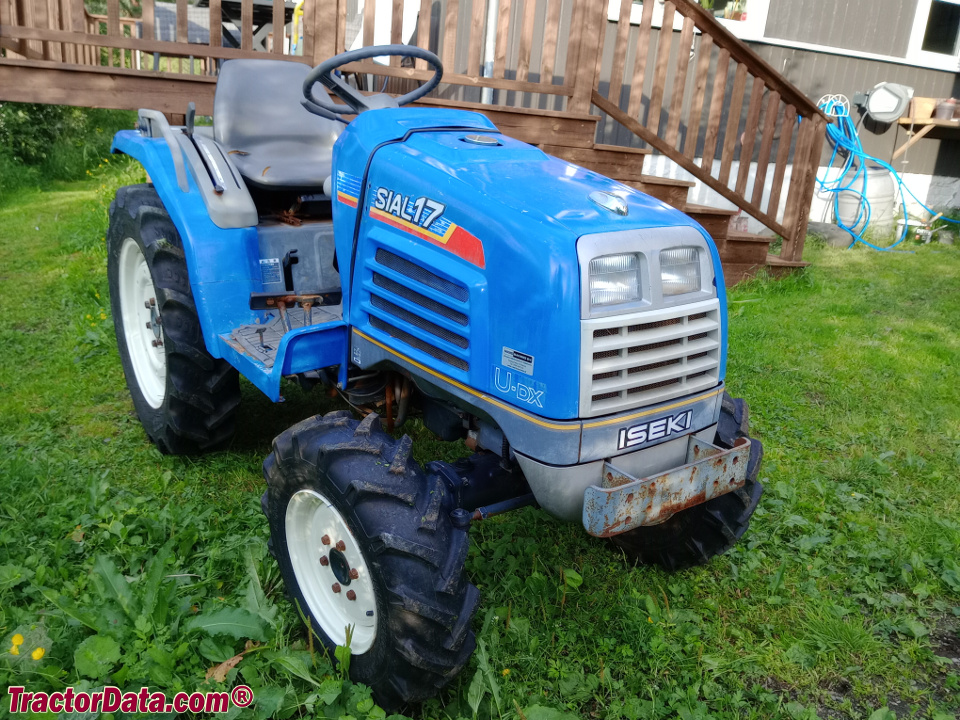

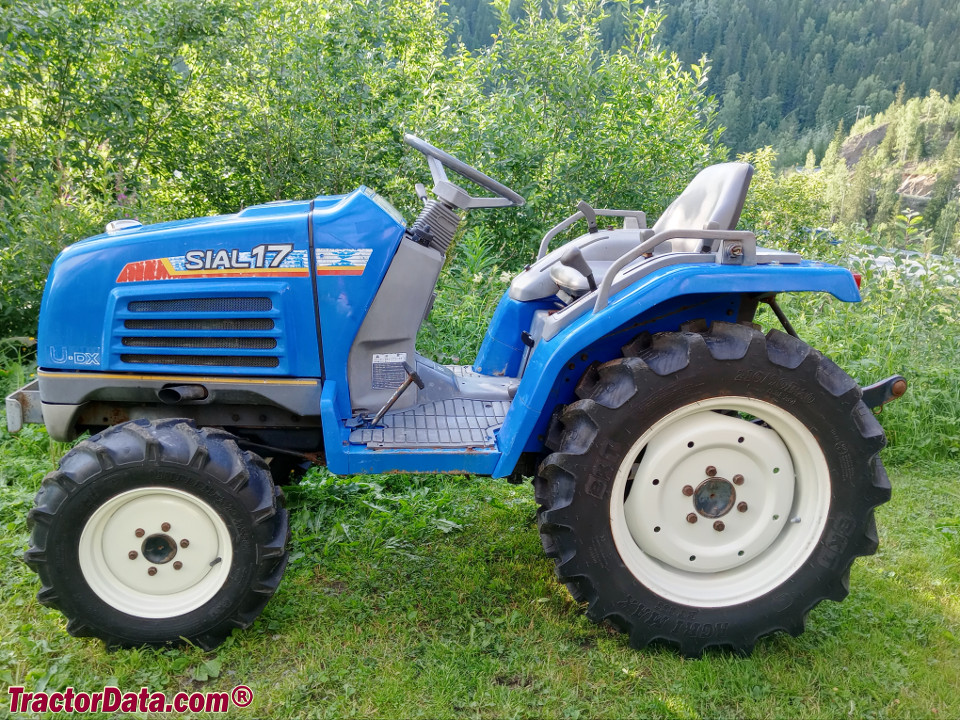

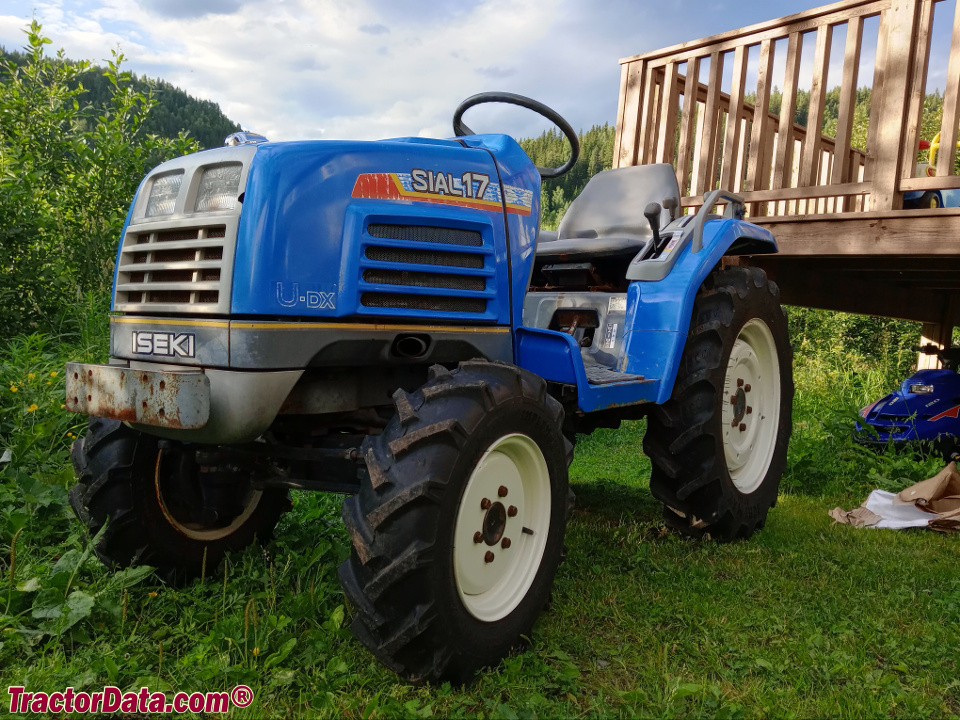

The Iseki TF17F is a compact tractor rated at 16 hp, one of the smaller options in its class. It was manufactured in 1995. Equipped with a 3-cylinder diesel liquid-cooled engine, the TF17F operates through four-wheel drive via a 6-speed gearbox, weighing 689 kg and suitable for applications of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
689 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
16 hp
Recorded weight
689 kg
Transmissions
6-speed
Production years
1995-1995
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS with canopy. Cab optional.Reference
Variants
TF17F-UutilityReference
TF17HFhigh-cropReference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine12.9 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)11.6 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM524@2500Reference
Engine RPM730@2500Reference
Engine RPM1187@2500Reference
Dimensions
Wheelbase136 cmReference
Weight689 kgReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
