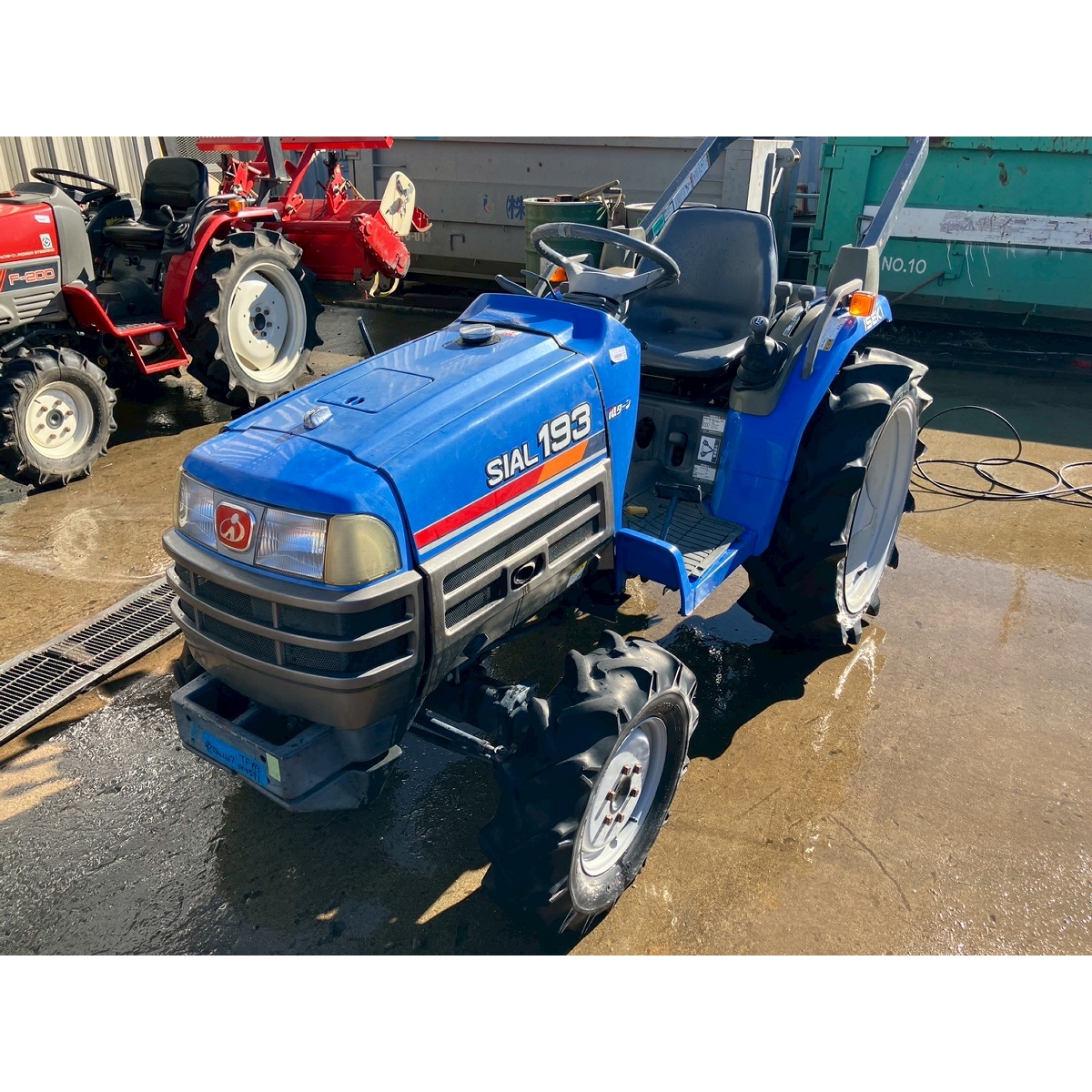

Iseki TF193
Iseki TF193 — TF SeriesCompact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
767 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Engine
1.1L 3-cyl dieselReference
Engine14.3 kWReference
E3112-BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
6-speed shuttleReference
Gears6 forward and 2 reverseReference
TypeshuttleReference
Gears6 forward and reverseReference
PTO & Hydraulics
PTO (claimed)12.8 kWReference
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM522@2500Reference
Engine RPM783@2500Reference
Engine RPM1183@2500Reference
Dimensions
Wheelbase139 cmReference
Weight767 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Width110 cmReference
Height195 cmReference
Ground clearance33 cmReference
Front tread88 cmReference
Rear tread85/100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
