Tractor · 1995Unverified

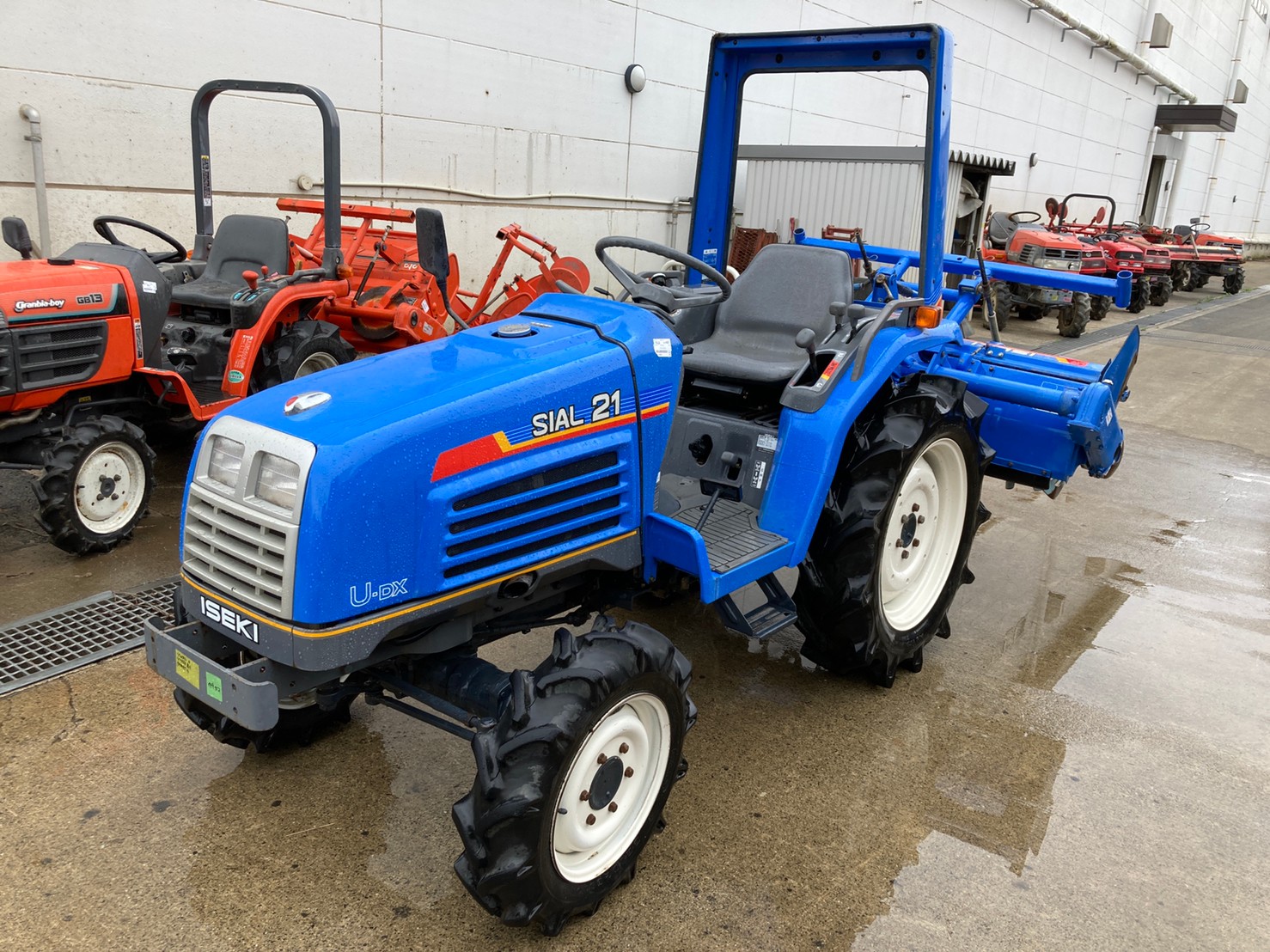

Iseki TF21F
Iseki TF21F — Sial Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
870 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS with canopy. Cab optional. Two-post folding ROPS on TF21NF.Reference
Variants
TF21F-UutilityReference
TF21NFnarrowReference
Engine
Iseki 1.4L 3-cyl dieselReference
Fuel tank23.8 LReference
Engine15.4 kWReference
Iseki E3CEReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke85 x 84 mmReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)13.9 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM524@2500Reference
Engine RPM730@2500Reference
Engine RPM1269@2500Reference
Dimensions
Wheelbase151 cmReference
Weight870 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
TF21NF Optional tires (ag)Front: 6-12. Rear: 9.5-22Reference
Length278 cmReference
Width115 cmReference
Height194 cmReference
Ground clearance33 cmReference
Front tread96 cmReference
Rear tread88 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
