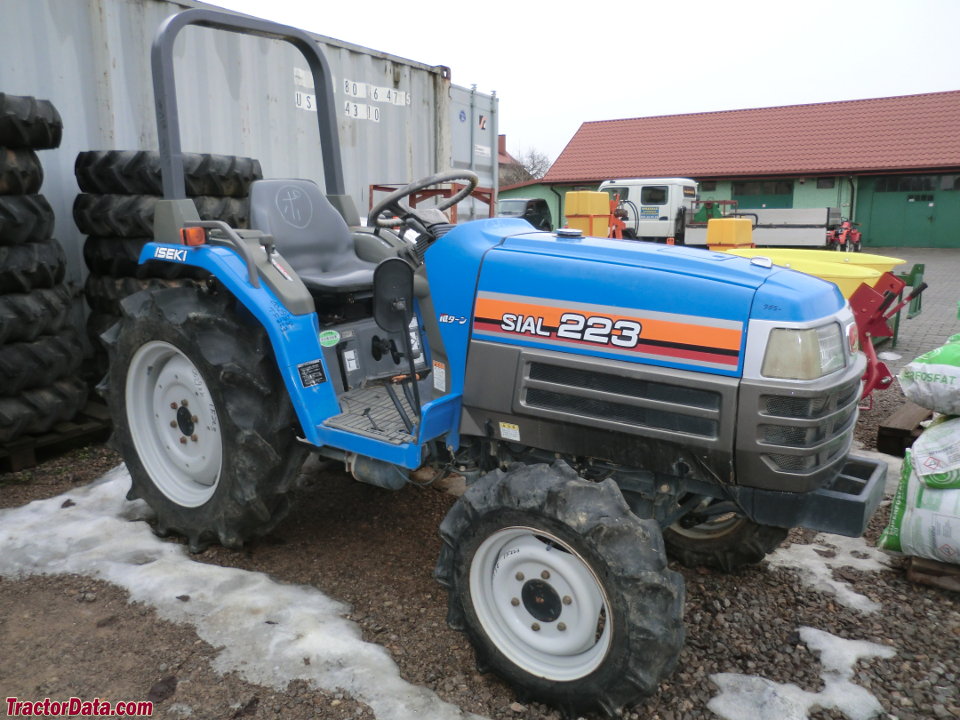

Iseki TF223
Iseki TF223 — TF SeriesCompact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
874 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Engine
1.4L 3-cyl dieselReference
Fuel tank23.8 LReference
Engine16.2 kWReference
E3CE-BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke85 x 84 mmReference
Power16.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)14.5 kWReference
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM522@2500Reference
Engine RPM818@2500Reference
Engine RPM1265@2500Reference
Dimensions
Wheelbase154 cmReference
Weight874 kgReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length289 cmReference
Width118 cmReference
Height193 cmReference
Ground clearance33 cmReference
Front tread96 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
