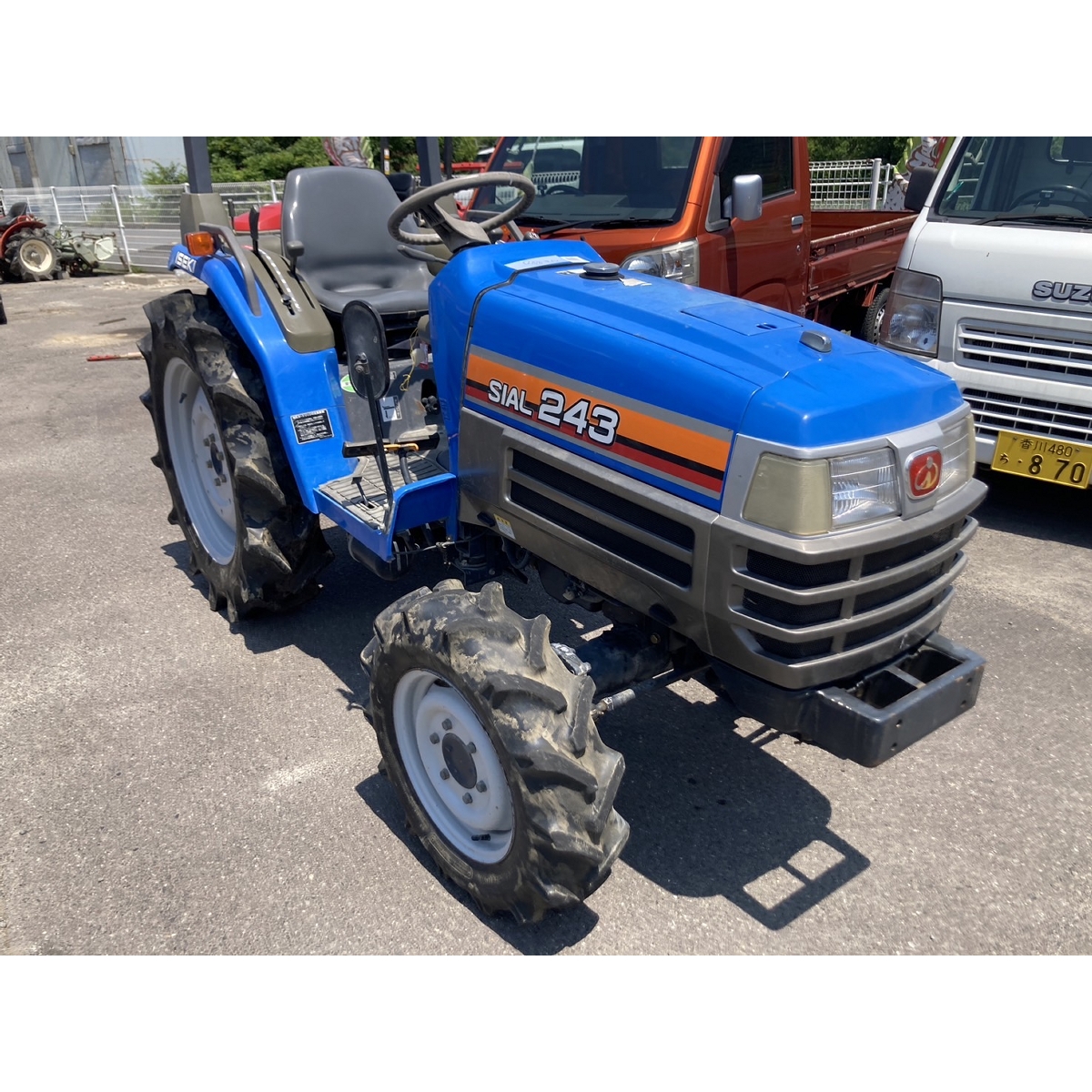

Iseki TF243
Iseki TF243 — TF SeriesCompact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
879 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Engine
1.5L 3-cyl dieselReference
Engine17.7 kWReference
E3CF-BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)15.9 kWReference
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM522@2500Reference
Engine RPM818@2500Reference
Engine RPM1265@2500Reference
Dimensions
Wheelbase154 cmReference
Weight879 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length289 cmReference
Width119 cmReference
Height196 cmReference
Ground clearance36 cmReference
Front tread96 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
