Tractor · 1995Unverified

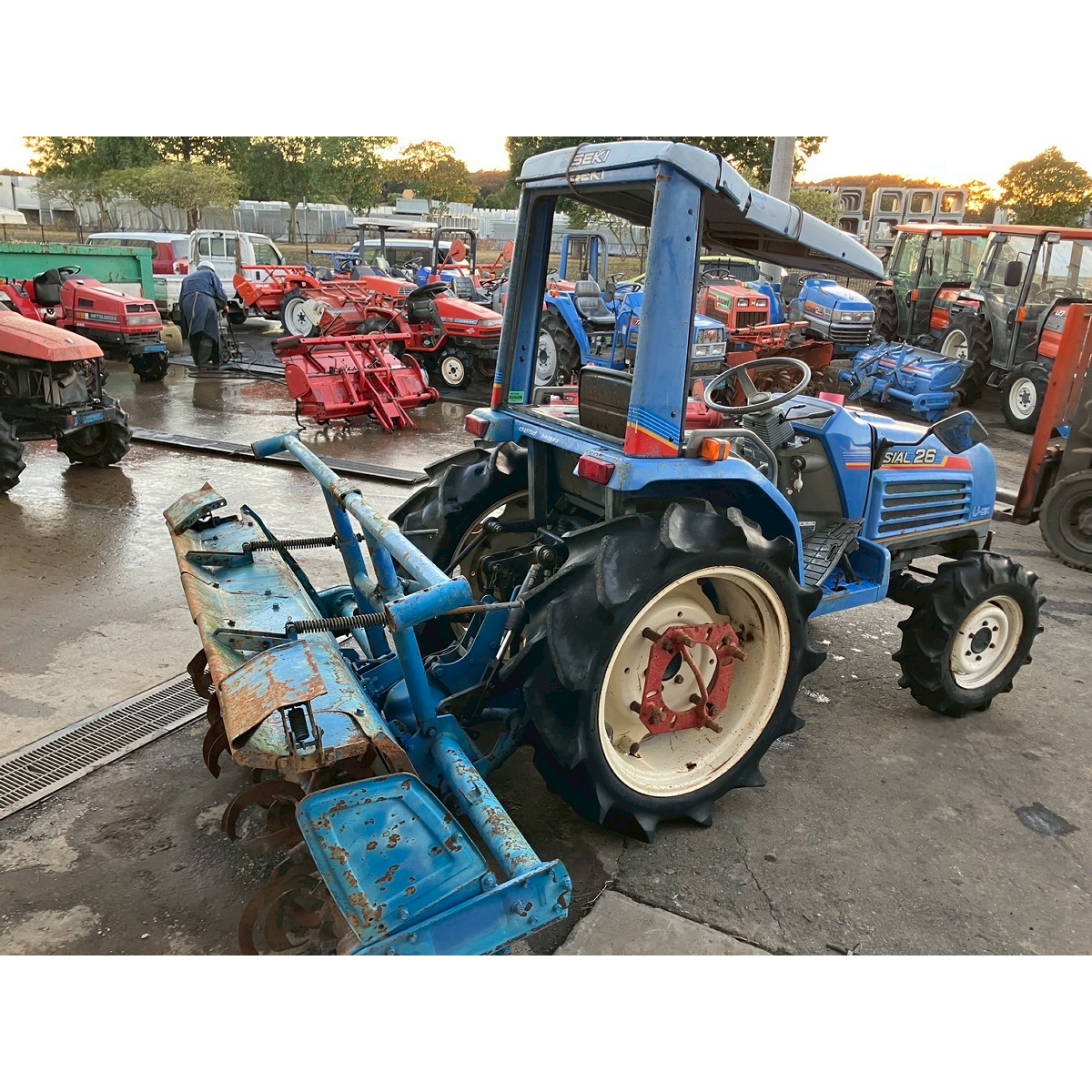

Iseki TF26F
Iseki TF26F — Sial Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
879 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS with canopy. Cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank23.8 LReference
Engine19.1 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power19.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM524@2500Reference
Engine RPM730@2500Reference
Engine RPM1269@2500Reference
Dimensions
Wheelbase151 cmReference
Weight879 kgReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length278 cmReference
Width115 cmReference
Height196 cmReference
Ground clearance35 cmReference
Front tread96 cmReference
Rear tread88 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
