Tractor · 2001Unverified

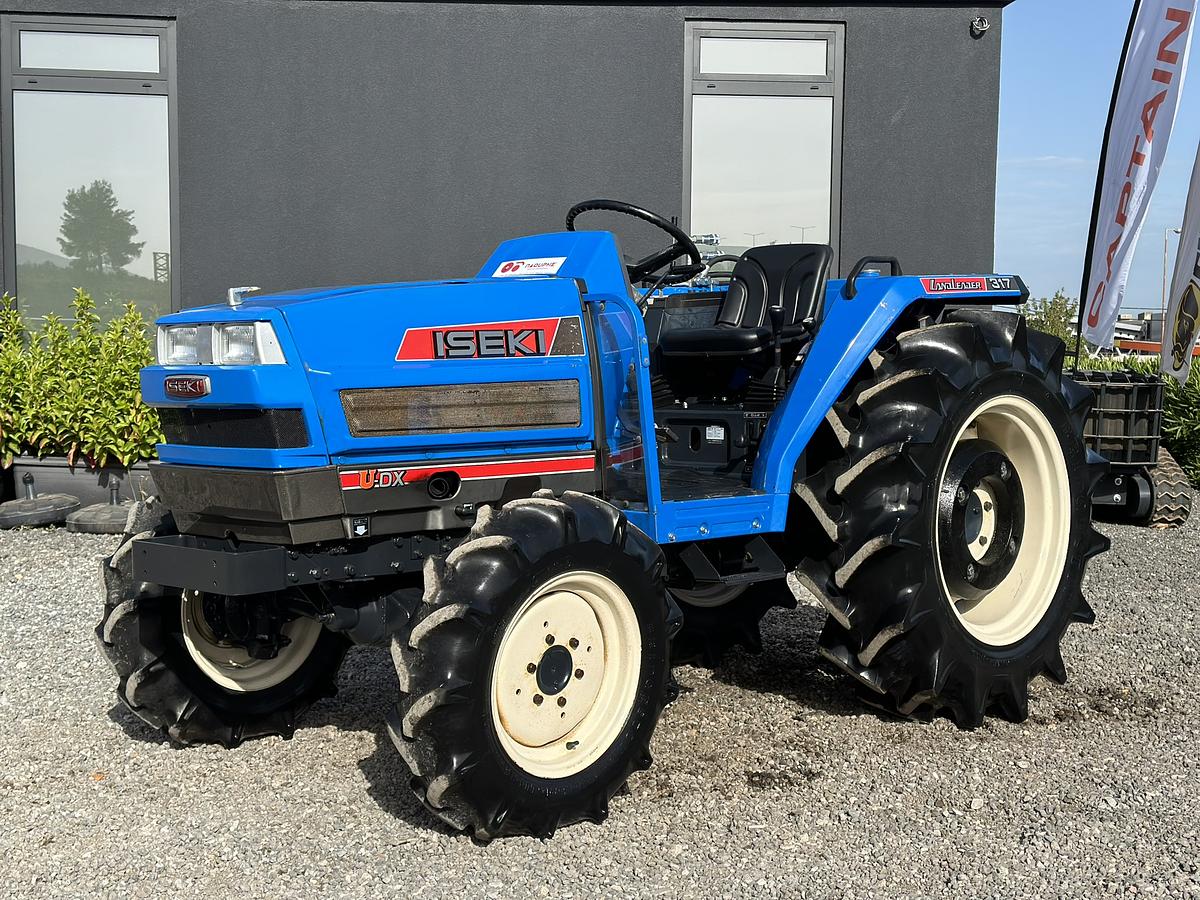

Iseki TF317
Iseki TF317 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1543 to 1609 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
SteeringmanualReference
Differential mechanical wet disc brakesReference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine12.5 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.5 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
Starter typeelectricReference
Oil capacity3.1 LReference
Coolant capacity5.1 LReference
Transmission
6-speed unsynchronizedReference
hydrostaticReference
9-speed unsynchronizedReference
TypeunsynchronizedReference
Gears6 forward and 2 reverseReference
Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Gears9 forward and 3 reverseReference
Gear transmission with optional creeper range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)550 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTOindependent on hydrostaticReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase151 cmReference
Weight1543 to 1609 poundsReference
Front tire5.00-12Reference
Rear tire8-16Reference
Ag front5.00-12Reference
Ag rear8-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315/75D-15Reference
Length275 cmReference
Width112 cmReference
Height (steering wheel)129 cmReference
Height (ROPS)227 cmReference
Ground clearance16 cmReference
Shipping699 kgReference
Shipping729 kgReference
Max front axle749 kgReference
Max rear axle874 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Capacities
Max capacity1624 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
