Tractor · 2001Unverified

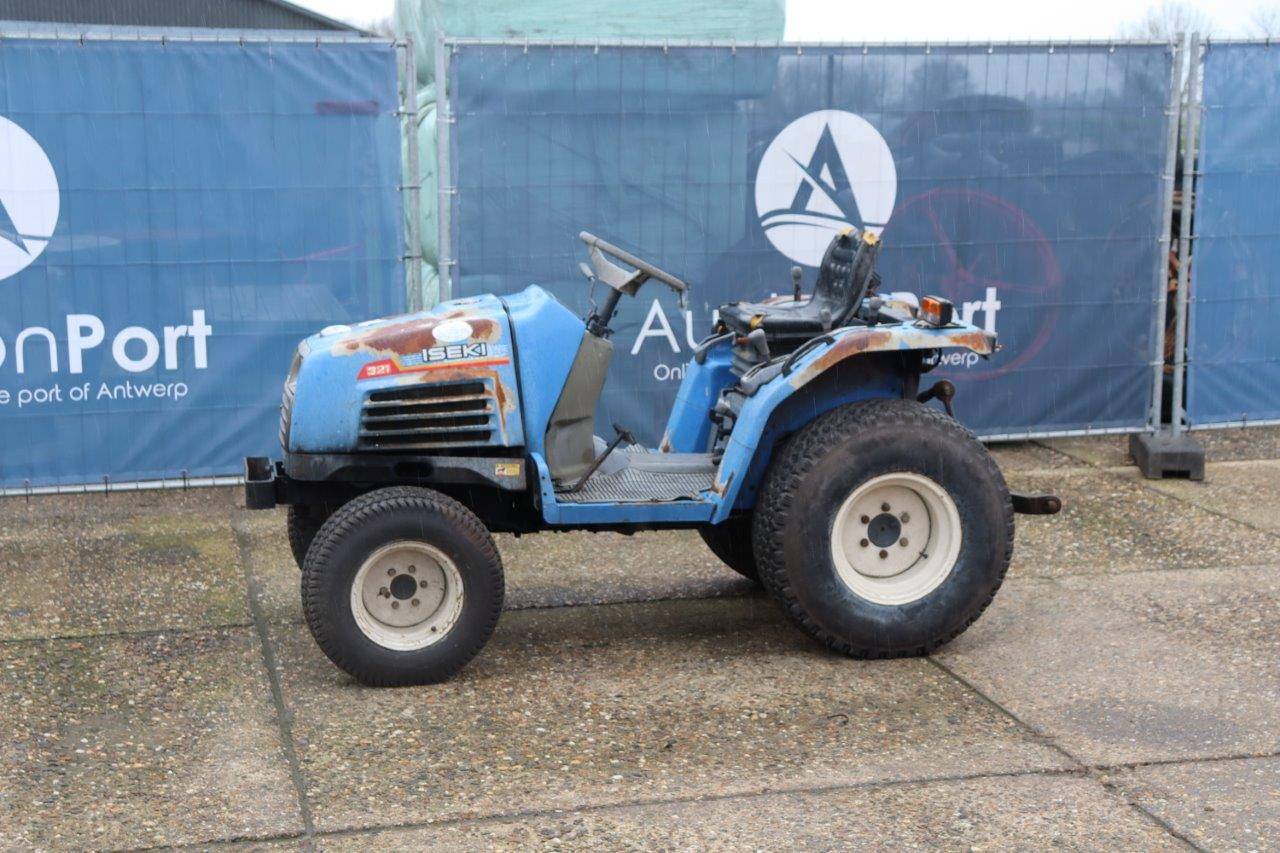

Iseki TF321

Name: Iseki TF321
Brand: Iseki

Iseki TF321 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Iseki TF321 is a 20 hp tractor, positioned at the lower end of its class. It was manufactured in the year 2001. The tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a hydrostatic transmission. It has a listed operating weight of 1587 to 1620 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1587 to 1620 pounds

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

20 hp

Transmissions

6-speed unsynchronized

Production years

2001-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringpower assistReference

Differential mechanical wet disc brakesReference

Engine

Iseki 1.1L 3-cyl dieselReference

Fuel tank18.2 LReference

Engine14.7 kWReference

Iseki E3112Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power14.7 kWReference

Air cleanerdry elementReference

Rated RPM2500Reference

Starter typeelectricReference

Oil capacity3.1 LReference

Coolant capacity5.1 LReference

Transmission

6-speed unsynchronizedReference

hydrostaticReference

9-speed unsynchronizedReference

TypeunsynchronizedReference

Gears6 forward and 2 reverseReference

Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Gears9 forward and 3 reverseReference

Gear transmission with optional creeper range.Reference

PTO & Hydraulics

Rear TypeIReference

Rear lift (at ends)550 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTOindependent on hydrostaticReference

Rear PTO Type540/1000Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase151 cmReference

Weight1587 to 1620 poundsReference

Front tire6-12Reference

Rear tire9.5-16Reference

Ag front6-12Reference

Ag rear9.5-16Reference

Lawn/turf front24x8.50-12Reference

Lawn/turf rear315/75D-15Reference

Length275 cmReference

Width112 cmReference

Height (steering wheel)132 cmReference

Height (ROPS)227 cmReference

Ground clearance16 cmReference

Shipping719 kgReference

Shipping734 kgReference

Max front axle749 kgReference

Max rear axle874 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Battery AH45Reference

Capacities

Max capacity1624 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
