Tractor · 2001Unverified

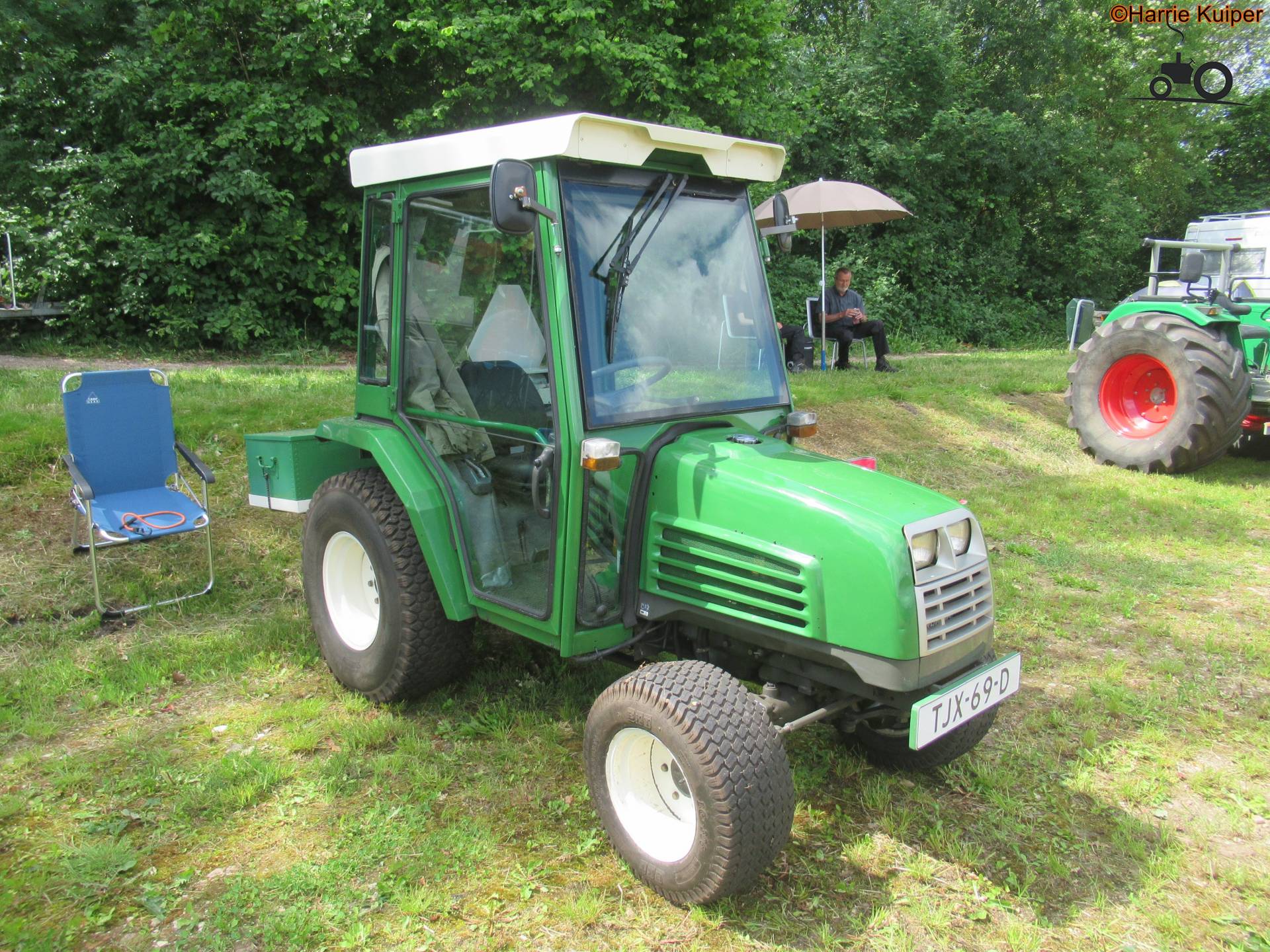

Iseki TF325
Iseki TF325 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1874 to 1940 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringpower assistReference
Differential mechanical wet disc brakesReference
Engine
Iseki 1.4L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine18.0 kWReference
Iseki E3CEReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke85 x 84 mmReference
Power18.0 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
Starter typeelectricReference
Oil capacity4.1 LReference
Coolant capacity7.1 LReference
Transmission
9-speed unsynchronizedReference
hydrostaticReference
12-speed unsynchronizedReference
TypeunsynchronizedReference
Gears9 forward and 3 reverseReference
Three forward and one reverse gear with high, medium, and low ranges. Tractor must be stopped and clutch used to shift gears or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Gears12 forward and 4 reverseReference
Gear transmission with optional creeper range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)899 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTOindependent on hydrostaticReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase164 cmReference
Weight1874 to 1940 poundsReference
Front tire6-14Reference
Rear tire12.4-16Reference
Ag front6-14Reference
Ag rear12.4-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315x80D-16Reference
Length295 cmReference
Width141 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)231 cmReference
Ground clearance16 cmReference
Shipping850 kgReference
Shipping879 kgReference
Max front axle815 kgReference
Max rear axle1000 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Capacities
Max capacity1815 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
