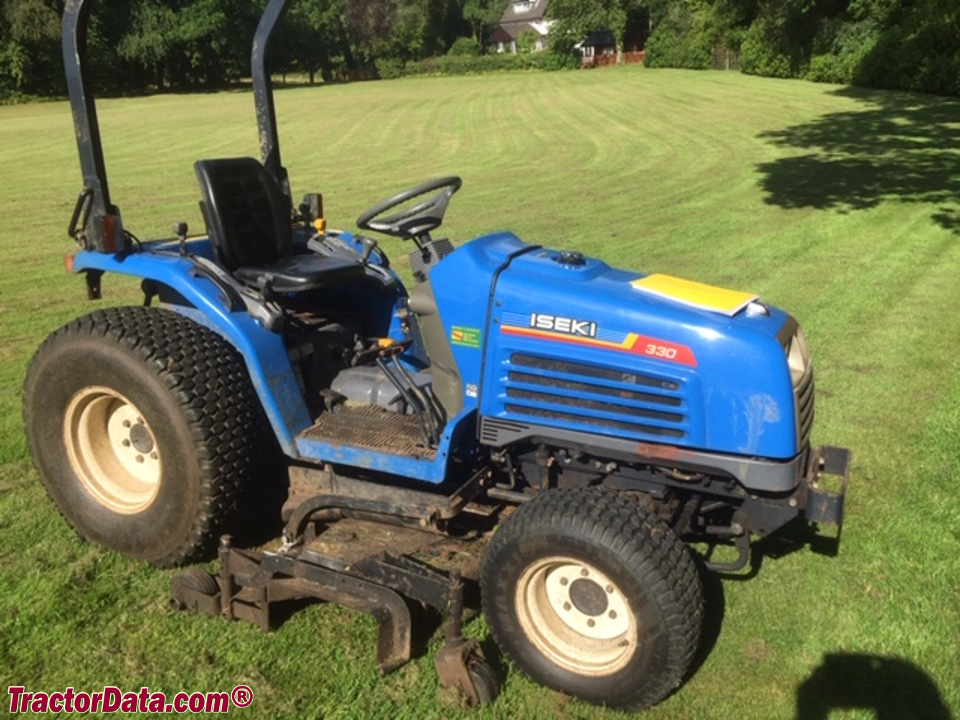

The Iseki TF330 is a tractor model with a rated power of 30 hp, positioning it at the lighter end of its class. Produced in 2001, it features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The TF330 has an operating weight of 879 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
879 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
30 hp
Recorded weight
879 kg
Transmissions
hydrostatic
Production years
2001-2001
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringpower assistReference
Differential mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine22.0 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power22.0 kWReference
Air cleanerdry elementReference
Rated RPM2500Reference
Starter typeelectricReference
Oil capacity4.1 LReference
Coolant capacity7.1 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at ends)899 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase164 cmReference
Weight879 kgReference
Front tire6-14Reference
Rear tire12.4-16Reference
Ag front6-14Reference
Ag rear12.4-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315x80D-16Reference
Length295 cmReference
Width141 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)231 cmReference
Shipping weight879 kgReference
Ground clearance16 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
