Tractor · Unverified

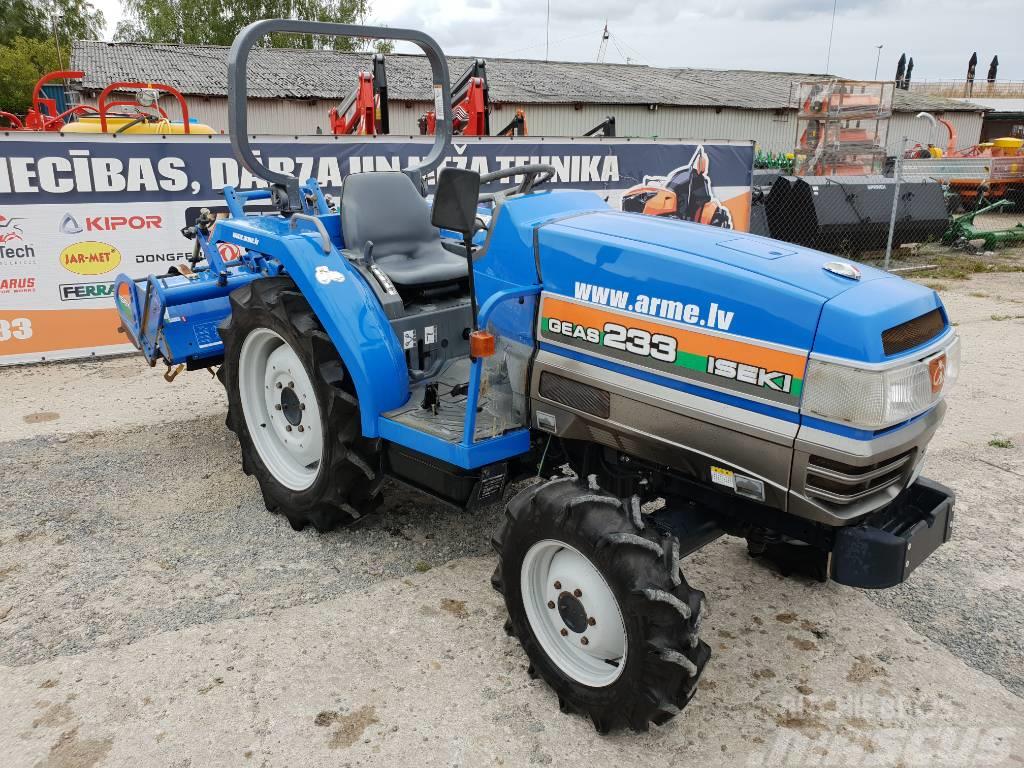

Iseki TG233
Iseki TG233 — ???? - 2004 TG SeriesCompact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2646 to 2998 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine16.9 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power16.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type577/767/1052/1243 (1.375)Reference
Dimensions
Wheelbase155 cmReference
Weight2646 to 2998 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length296 cmReference
ROPS Width133 cmReference
Cab Width140 cmReference
Height194 cmReference
ROPS Weight1200 kgReference
Cab Weight1359 kgReference
Ground clearance32 cmReference
Front tread96 cmReference
Rear tread101 to 117 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
