Tractor · Unverified

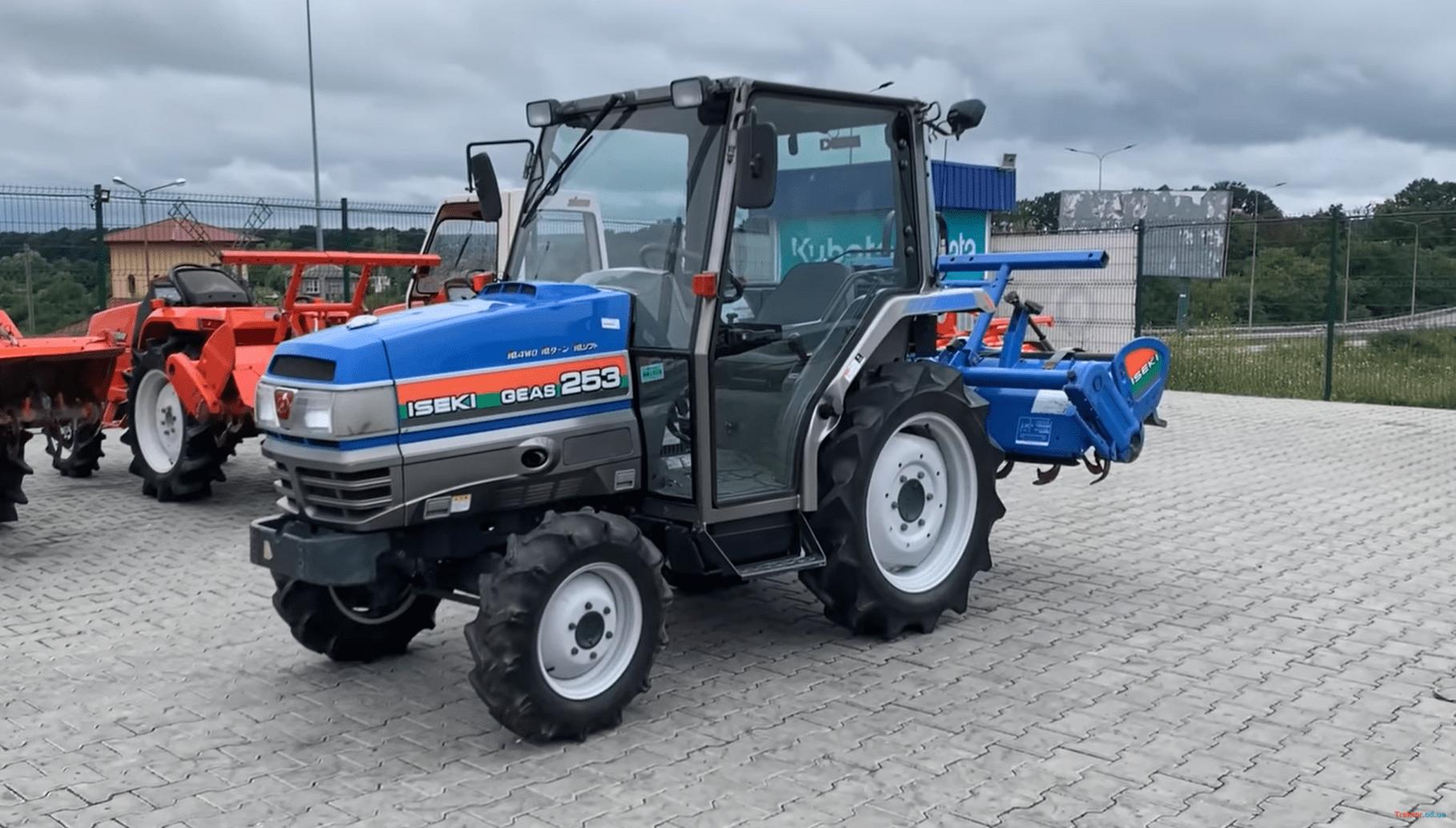

Iseki TG253

Name: Iseki TG253
Brand: Iseki

Iseki TG253 — ???? - 2004 TG SeriesCompact Utility tractor · 25 hp. Reference specifications; pending source verification.

The Iseki TG253 is a tractor with a power rating of approximately 25 hp, positioning it at the lighter end of its class. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a 16-speed gearbox. The tractor's operating weight falls within the range of 2712 to 3064 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2712 to 3064 pounds

Catalogue coverage

Variants represented

Richest spec table

40 rows

Recorded power

25 hp

Recorded weight

1230 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank35.0 LReference

Engine18.4 kWReference

Iseki E3CFReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power18.4 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

Rear TypeIReference

Controlposition controlReference

Rear PTO Type577/767/1052/1243 (1.375)Reference

Dimensions

Wheelbase159 cmReference

Weight2712 to 3064 poundsReference

Front tire7-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

Length296 cmReference

ROPS Width133 cmReference

Cab Width140 cmReference

Height197 cmReference

ROPS Weight1230 kgReference

Cab Weight1389 kgReference

Ground clearance34 cmReference

Front tread108 cmReference

Rear tread101 to 117 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
