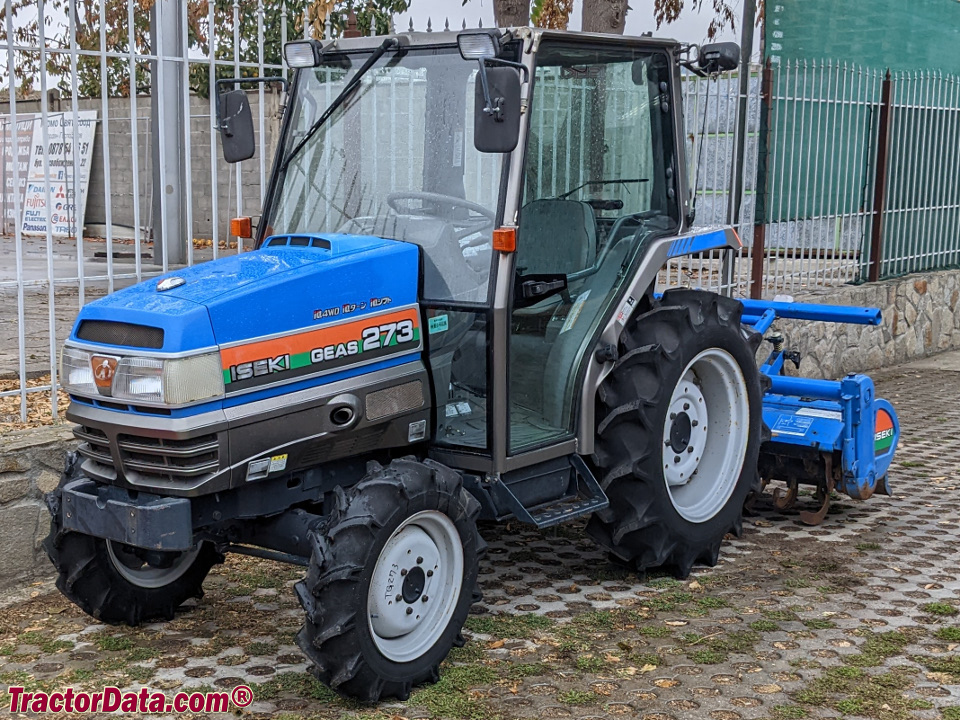

Iseki TG273
Iseki TG273 — ???? - 2004 TG SeriesCompact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2789 to 3142 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
TG273utilityReference
TG273NnarrowReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine19.9 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power19.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type600/797/1094/1292 (1.375)Reference
Dimensions
Wheelbase168 cmReference
Weight2789 to 3142 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length307 cmReference
ROPS Width136 cmReference
Cab Width140 cmReference
Height198 cmReference
ROPS Weight1265 kgReference
Cab Weight1425 kgReference
Ground clearance37 cmReference
Front tread108 cmReference
Rear tread104 to 136 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
