Tractor · Unverified

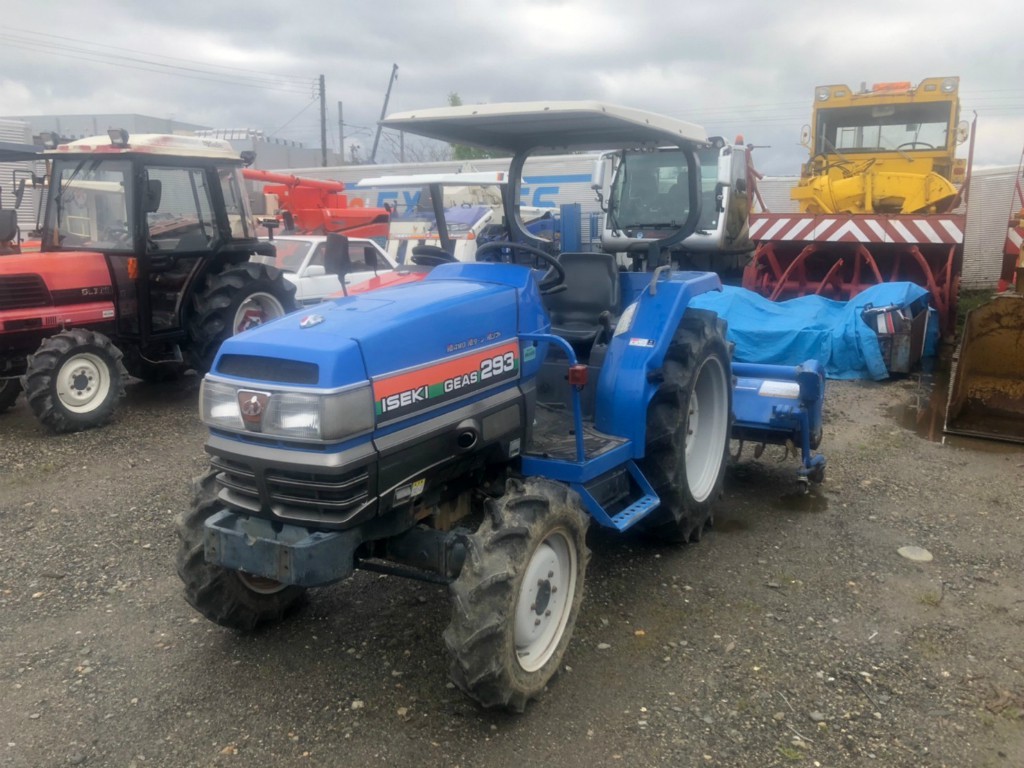

Iseki TG293
Iseki TG293 — ???? - 2004 TG SeriesCompact Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
2910 to 3263 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine21.3 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power21.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears in four ranges with mechanical shuttle. Tractor must be stopped, and clutch used, to shift.Reference
TransmissionIQ ShiftReference
Typepower shuttleReference
Four push-button gears in four ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTOindependentReference
Clutch600:2600Reference
Clutch797:2600Reference
Clutch1094:2600Reference
Clutch1292:2600Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight2910 to 3263 poundsReference
Front tire7-16Reference
Rear tire11.2-26Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-26Reference
Length307 cmReference
ROPS Width136 cmReference
Cab Width140 cmReference
Height196 cmReference
ROPS Weight1319 kgReference
Cab Weight1480 kgReference
Ground clearance36 cmReference
Front tread108 cmReference
Rear tread104 to 136 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
