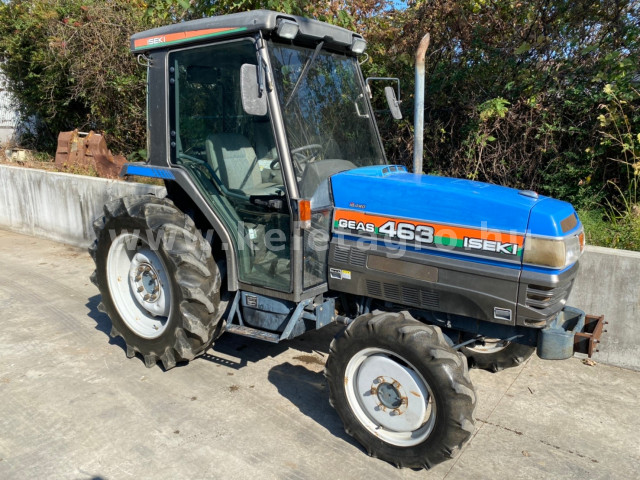

The Iseki TG463 is a tractor rated at 45 hp — making it one of the more compact options in its class. Under the hood is a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 16-speed gearbox. Listed weight is 1964 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1964 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
45 hp
Recorded weight
1964 kg
Transmissions
16-speed shuttle
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 2.6L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine34.3 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Power34.3 kWReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Pump flow29.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight1964 kgReference
Front tire8-18Reference
Rear tire13.6-28Reference
Ag front8-18Reference
Ag rear13.6-28Reference
Length357 cmReference
Width156 cmReference
Height234 cmReference
Ground clearance37 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
