Tractor · 2004Unverified

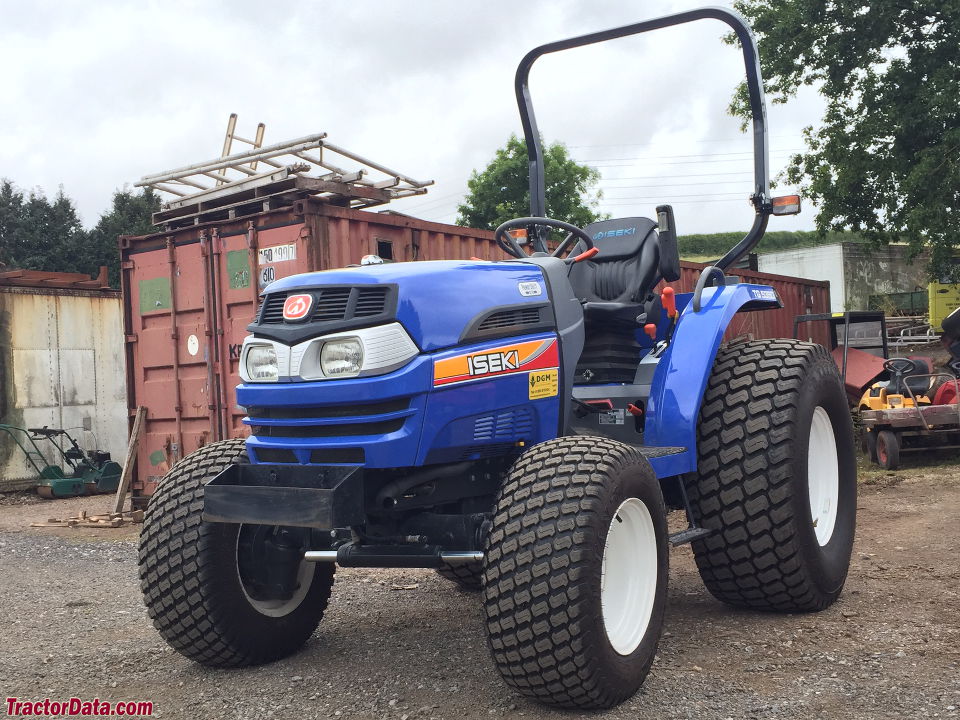

Iseki TG5390
Iseki TG5390 — TG Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1309 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet discs brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine28.0 kWReference
Iseki E3CDTReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power28.0 kWReference
Air cleanerdry elementReference
Compression21.7:1Reference
Rated RPM2600Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity6.7 LReference
Transmission
12-speedReference
Gears12 forward and reverseReference
Oil capacity31.0 LReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Pressure156.9 barReference
Total flow34.4 lpmReference
Steering flow18.5 lpmReference
Steering flow22.7 lpmReference
Steering press.78.5 barReference
Rear TypeIReference
Rear lift (at ends)1270 kgReference
Rear lift (at 24"/610mm)969 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase177 cmReference
Weight1309 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Lawn/turf front212/80D-15Reference
Lawn/turf rear355/80D-20Reference
Length313 cmReference
Width150 cmReference
Height257 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA630Reference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
