Tractor · 2004Unverified

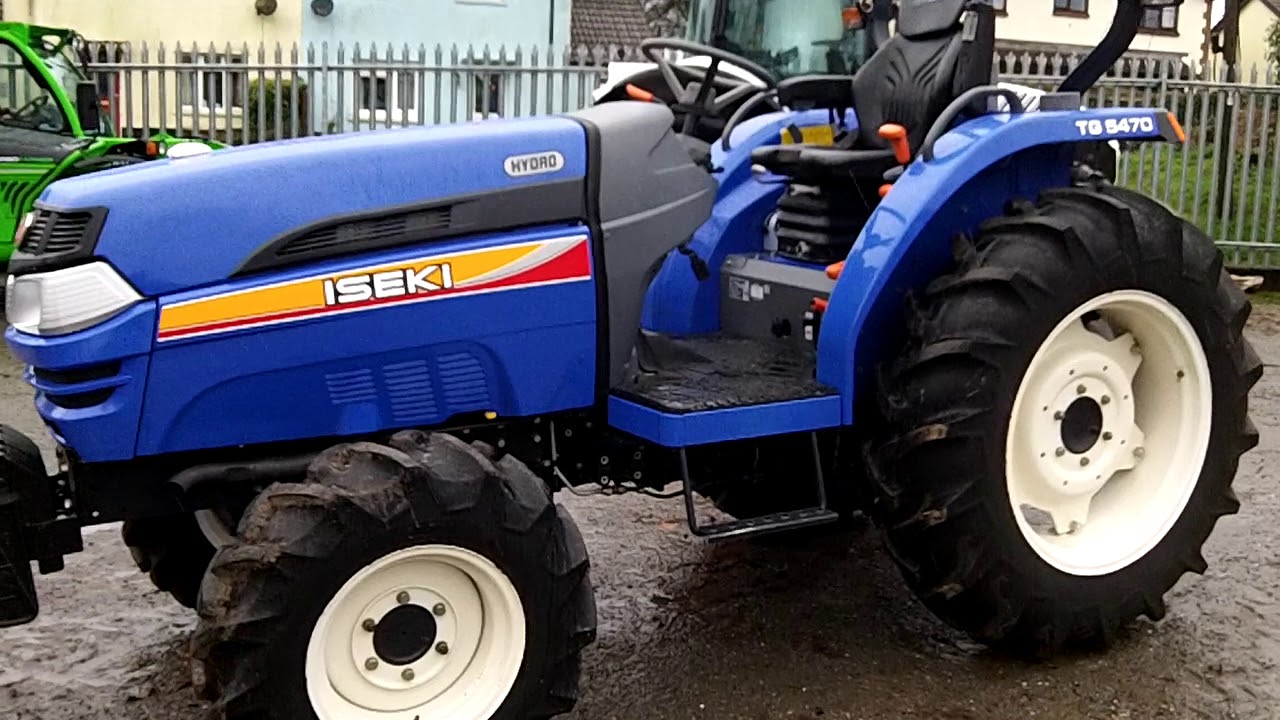

Iseki TG5470
Iseki TG5470 — TG Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1599 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockpedal standardReference
Steeringhydrostatic powerReference
Wet discs brakesReference
Two-post ROPS.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine33.9 kWReference
Iseki E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power33.9 kWReference
Air cleanerdry elementReference
Compression21.8:1Reference
Rated RPM2800Reference
Firing order1-3-4-2Reference
Starter typeelectricReference
Oil capacity8.0 LReference
Coolant capacity7.6 LReference
Transmission
12-speed power shuttleReference
hydrostaticReference
Typepower shuttleReference
Gears12 forward and reverseReference
Oil capacity38.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Pressure156.9 barReference
Total flow43.9 lpmReference
Steering flow18.5 lpmReference
Steering flow22.7 lpmReference
Steering press.118.0 barReference
Rear TypeIReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase189 cmReference
Weight1599 kgReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Ag front9.5-16Reference
Ag rear13.6-28Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear475/65D-20Reference
Length344 cmReference
Width155 cmReference
Height277 cmReference
Shipping weight1599 kgReference
Ground clearance40 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps60Reference
Battery CCA710Reference
Battery volts12Reference
Battery AH72Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
