Tractor · 2004Unverified

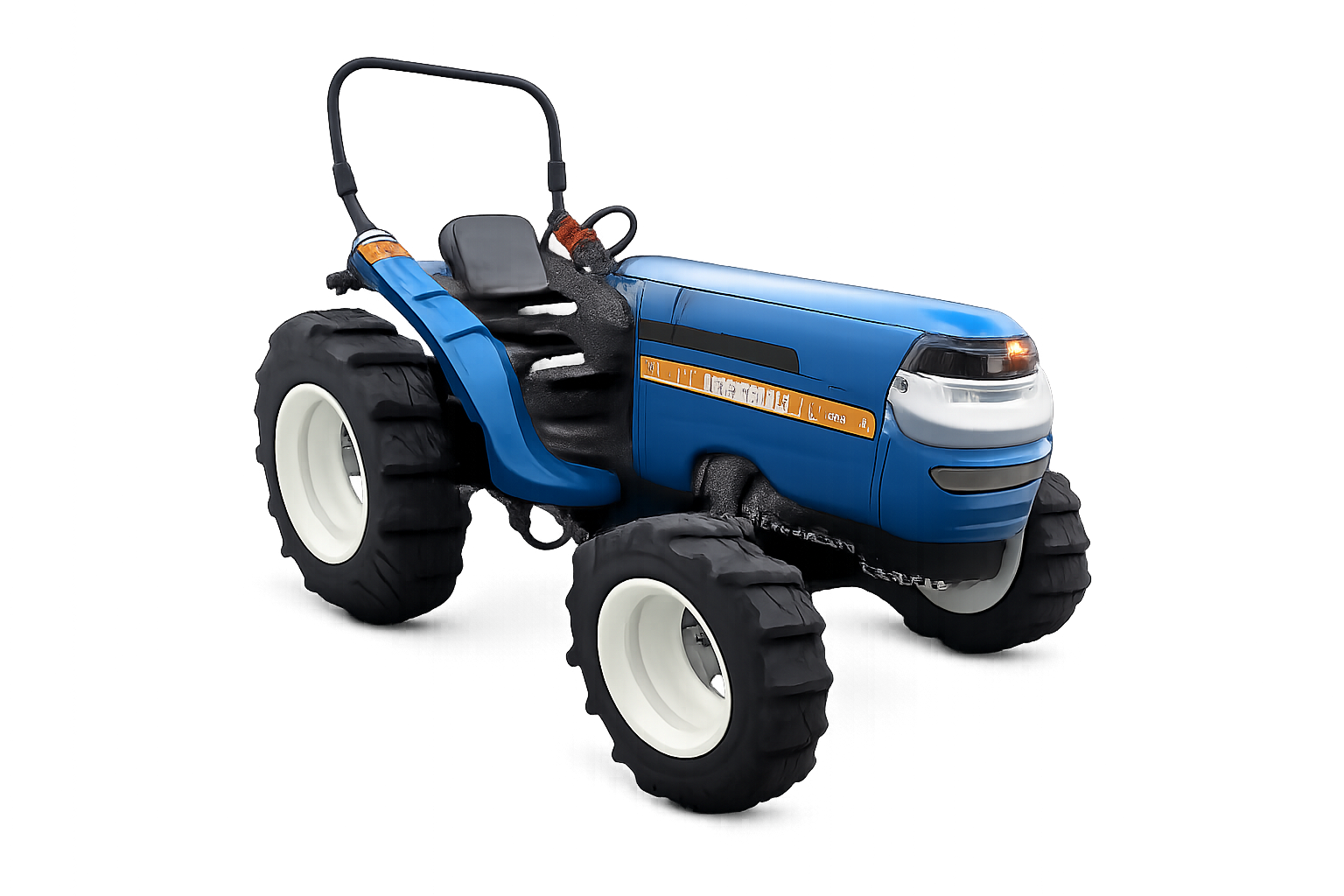

Iseki TG5570
Iseki TG5570 — TG Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
4090 to 4442 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 3.0L 4-cyl dieselReference
Engine44.7 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power44.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)35.0 kWReference
Typeopen centerReference
Pump flow48.4 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1779 kgReference
Rear Armstelescopic link endsReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase179 cmReference
Weight4090 to 4442 poundsReference
Front tire9.50-18Reference
Rear tire14.9-28Reference
Ag front9.50-18Reference
Ag rear14.9-28Reference
Width167 cmReference
Height (ROPS)232 cmReference
ROPS Shipping weight1855 kgReference
Cab Shipping weight2014 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
