Tractor · 2019Unverified

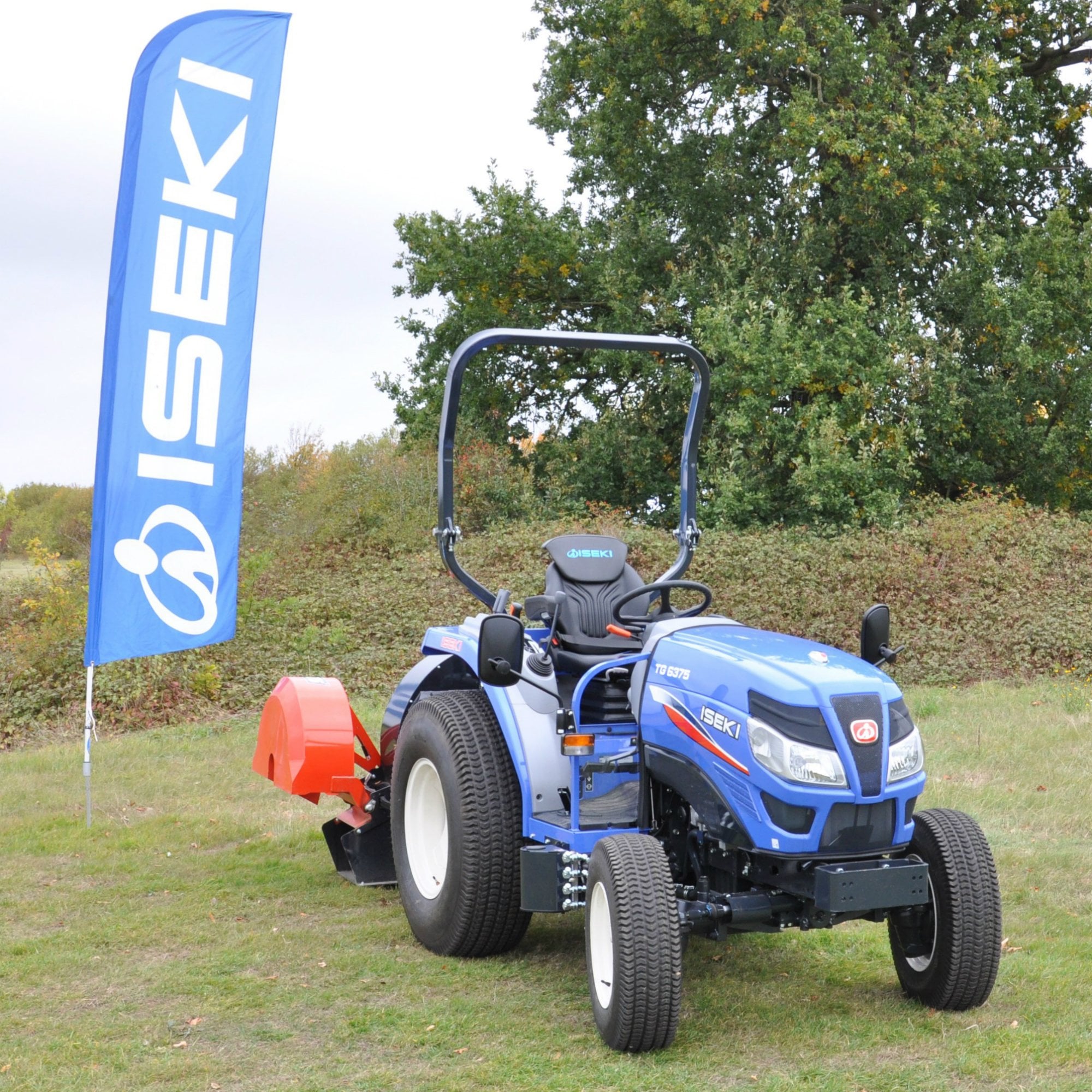

Iseki TG6375
Iseki TG6375 — TG6 Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
3428 to 3825 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)26.6 kWReference
Engine (net)25.9 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power (net)25.9 kWReference
Power (gross)26.6 kWReference
Rated RPM2600Reference
Torque111.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
12-speedReference
Gears24 forward and reverseReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow47.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1270 kgReference
Rear lift (at 24"/610mm)1149 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Mid PTOindependentReference
Mid PTO Type1000/1500/2000Reference
Dimensions
Wheelbase171 cmReference
Weight3428 to 3825 poundsReference
Length312 cmReference
Width144 cmReference
Height (ROPS)258 cmReference
Height (cab)229 cmReference
Cab Weight1735 kgReference
ROPS Weight1554 kgReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
