Tractor · 2015Unverified

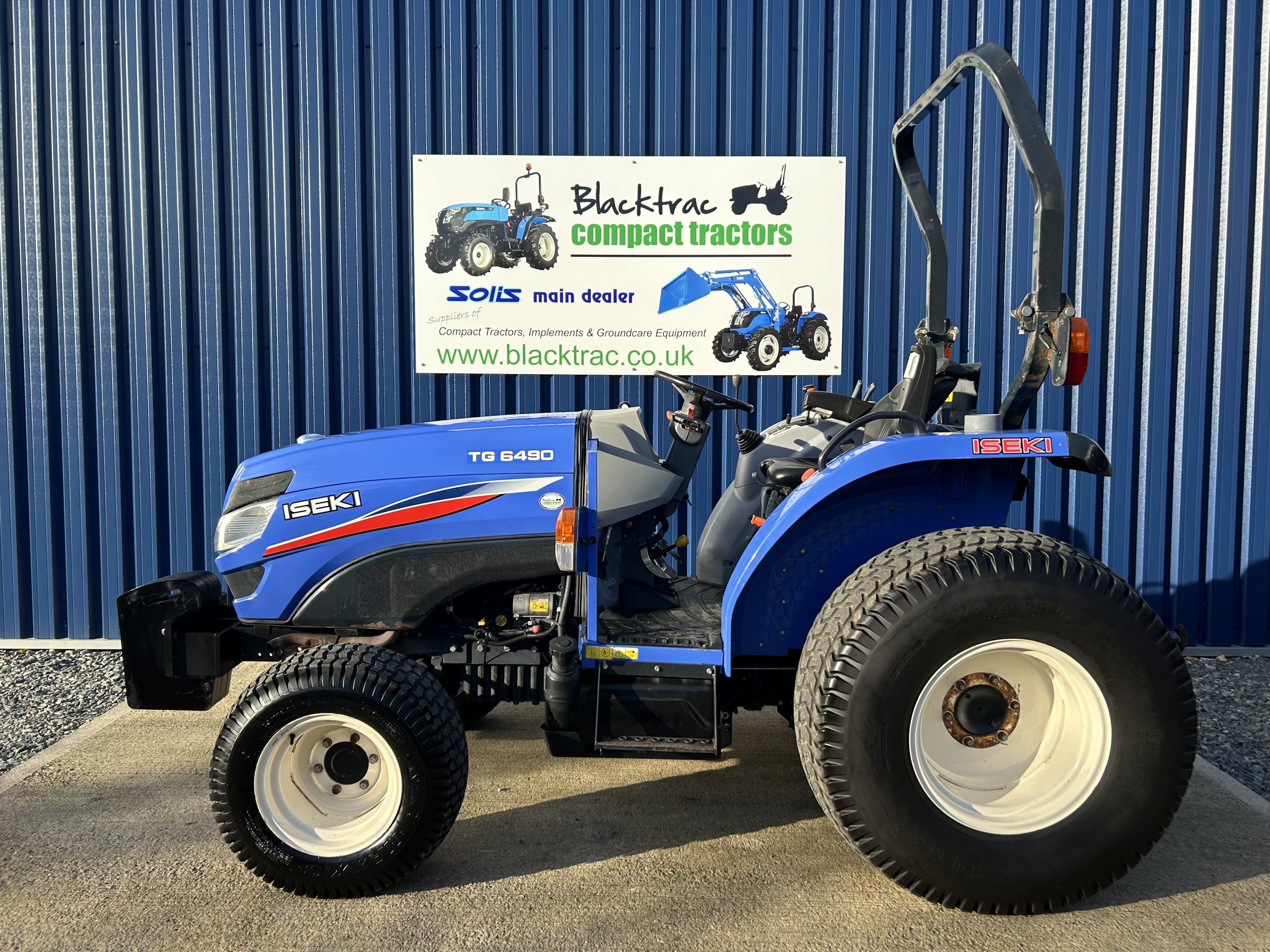

Iseki TG6490
Iseki TG6490 — TG6000 Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
3406 to 4123 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Differential lockstandardReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine (gross)35.1 kWReference
Iseki E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Power (gross)35.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
hydrostaticReference
ROPS gear Shipping1544 kgReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear valves2Reference
Pump flow47.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase189 cmReference
Weight3406 to 4123 poundsReference
Length337 cmReference
Width181 cmReference
Height (ROPS)230 cmReference
Height (cab)232 cmReference
Cab hydro Shipping1715 kgReference
Cab hydro Shipping1870 kgReference
Electrical
Charging systemalternatorReference
Battery CCA600Reference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
