Tractor · 2019Unverified

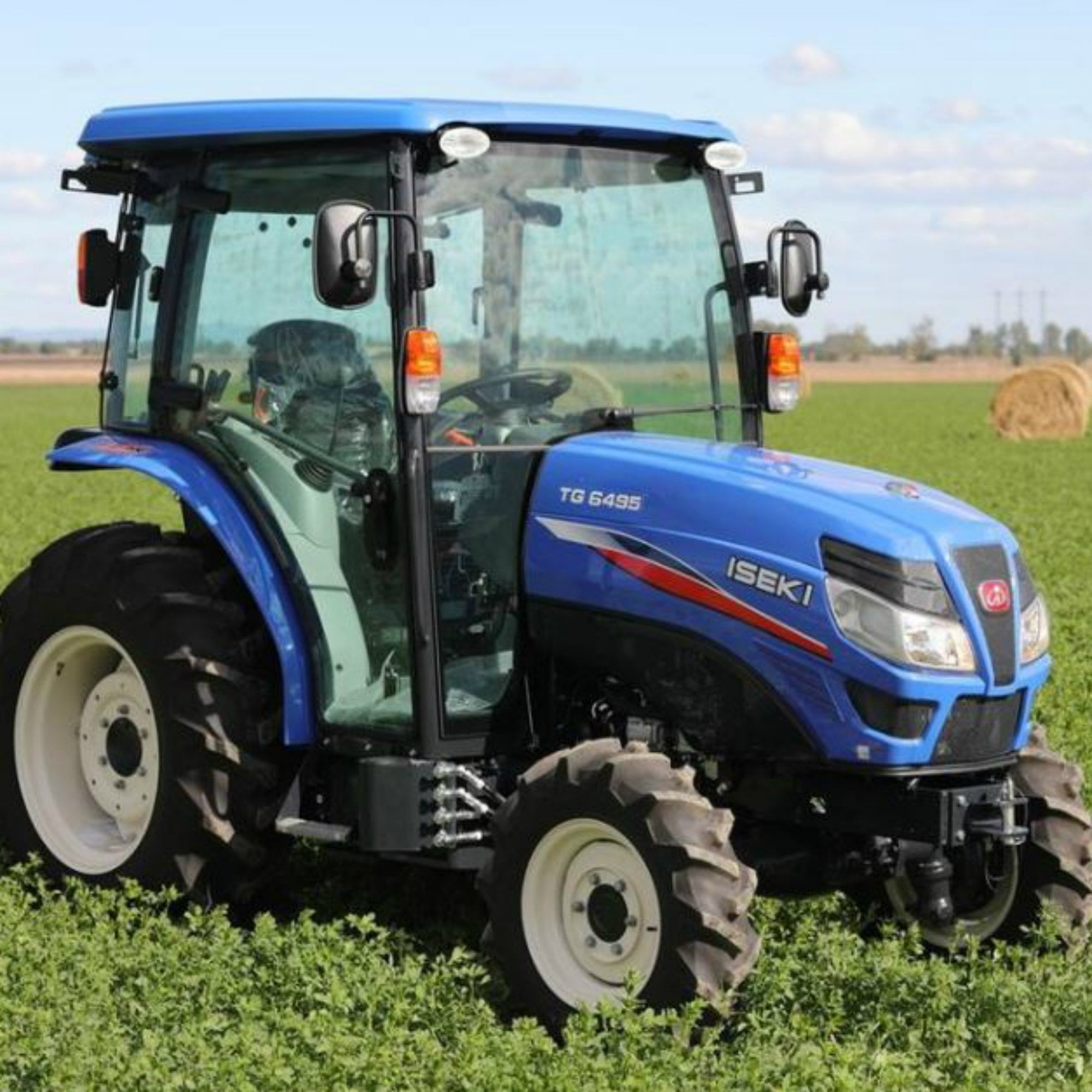

Iseki TG6495
Iseki TG6495 — TG6 Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
4101 to 4453 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine (gross)35.1 kWReference
Engine (net)33.5 kWReference
Iseki E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (net)33.5 kWReference
Power (gross)35.1 kWReference
Rated RPM2600Reference
Torque140.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
hydrostaticReference
12-speedReference
Gears24 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (6-range)Reference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow57.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Mid PTOindependentReference
Mid PTO Type1000/1500/2000Reference
Dimensions
Wheelbase193 cmReference
Weight4101 to 4453 poundsReference
Length346 cmReference
Width159 cmReference
Height (ROPS)265 cmReference
Height (cab)235 cmReference
Cab Weight2019 kgReference
ROPS Weight1860 kgReference
Ground clearance34 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
