Tractor · 2019Unverified

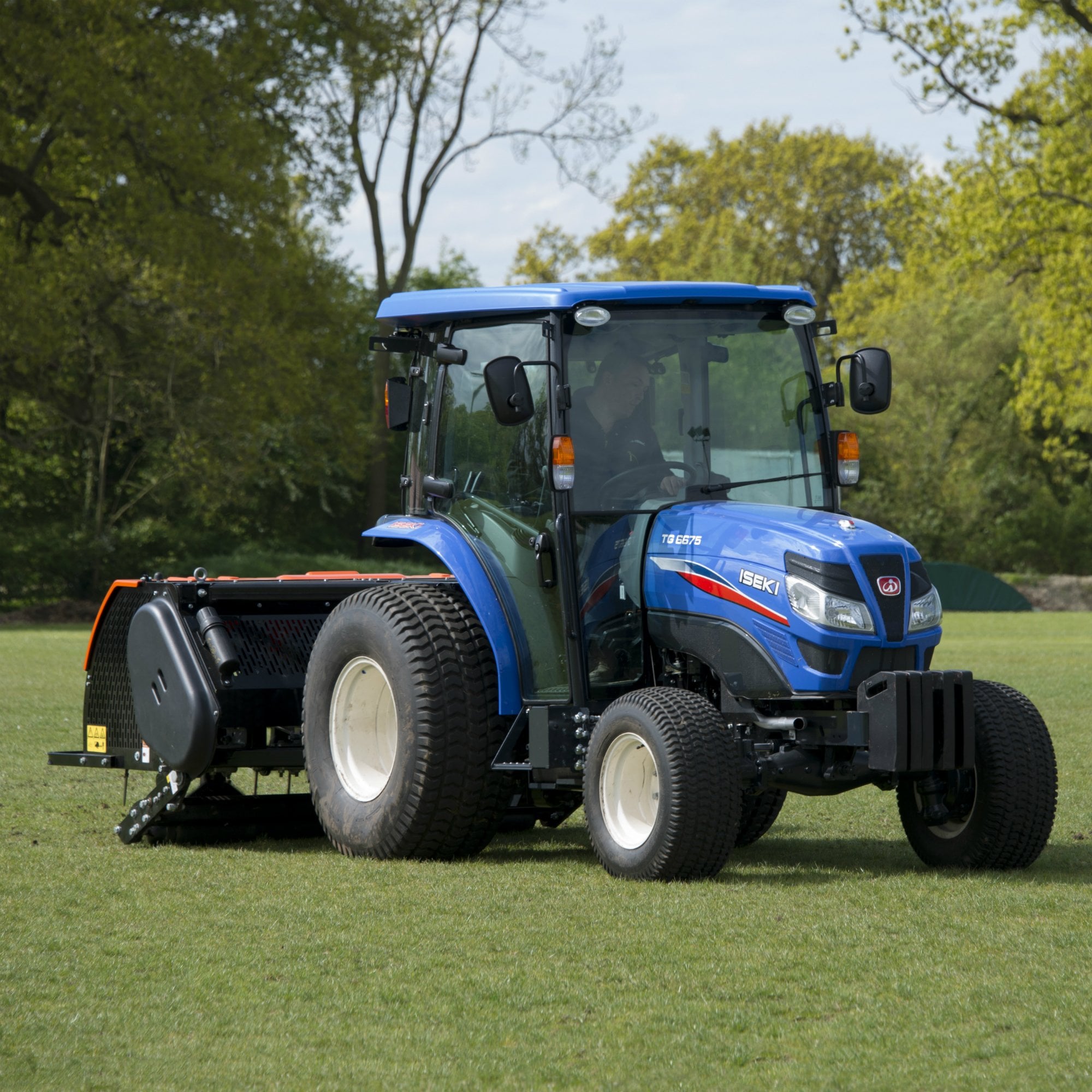

Iseki TG6675
Iseki TG6675 — TG6 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
4255 to 4608 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank53.0 LReference
Engine (gross)48.5 kWReference
Shibaura N4LDI-TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)48.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
12-speed power shuttleReference
TypehydrostaticReference
Gearsinfinite forward and reverse (6-range)Reference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow70.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase198 cmReference
Weight4255 to 4608 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Ag front9.5-16Reference
Ag rear13.6-28Reference
Length343 cmReference
Width172 cmReference
Height (ROPS)264 cmReference
Height (cab)233 cmReference
ROPS Weight1930 kgReference
Cab Weight2090 kgReference
Ground clearance25 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
