Tractor · 2004Unverified

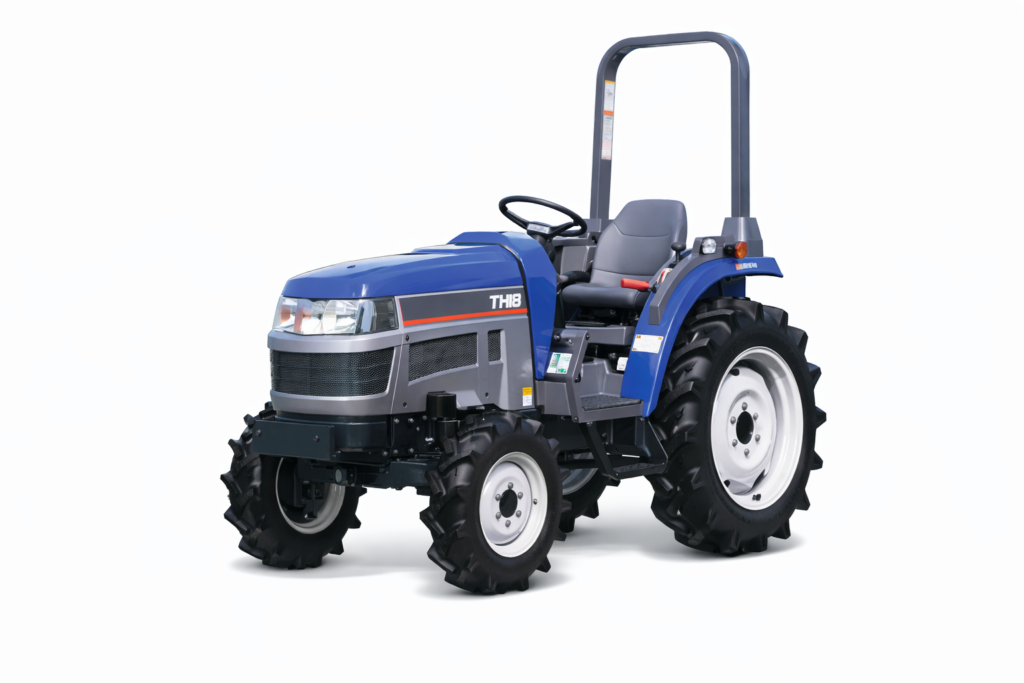

Iseki TH18
Iseki TH18 — TH Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
775 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine13.3 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power13.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Wheelbase135 cmReference
Weight775 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length259 cmReference
Width110 cmReference
Height (ROPS)186 cmReference
Ground clearance33 cmReference
Front tread88 cmReference
Rear tread85/100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
