Tractor · 2010Unverified

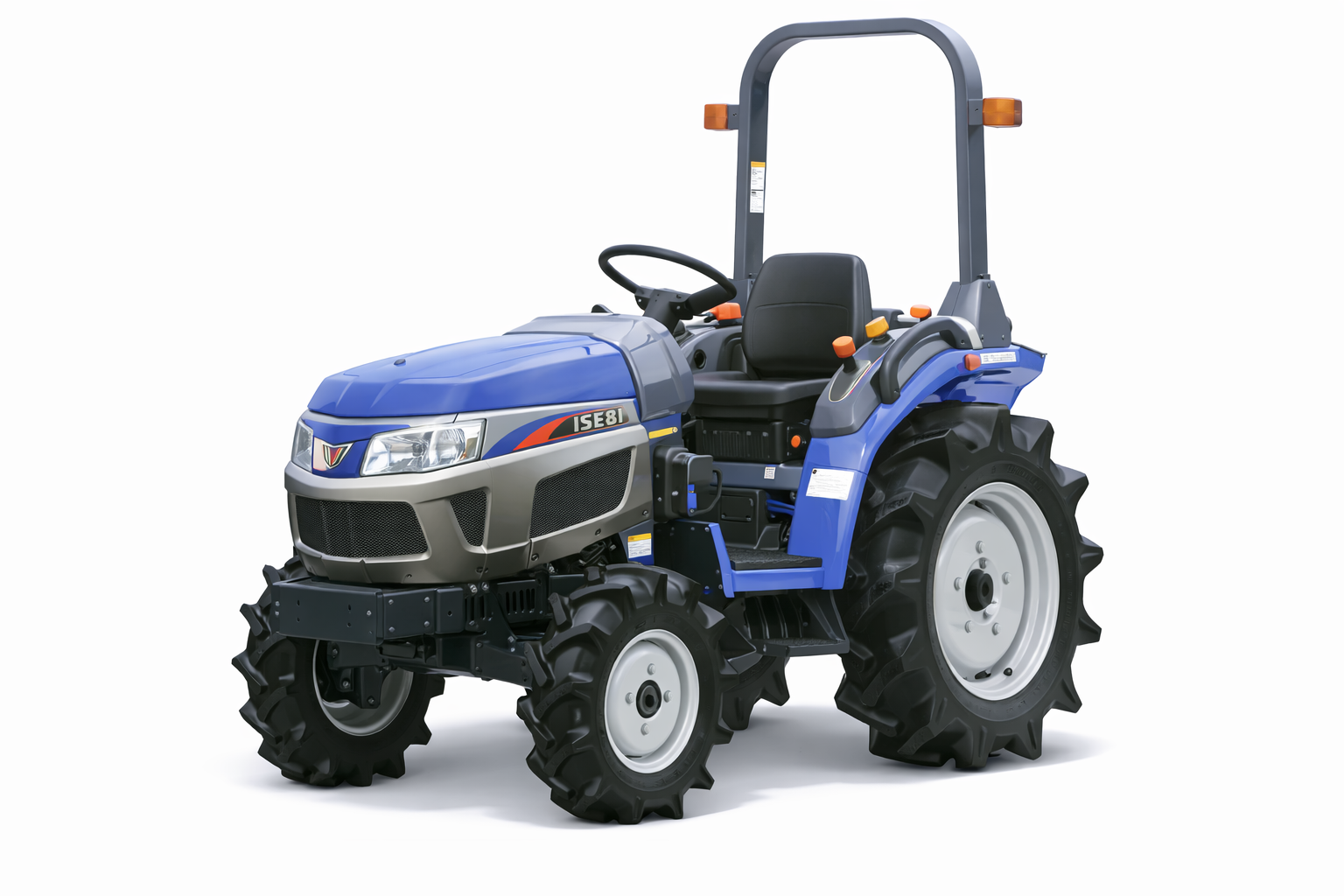

Iseki TH185
Iseki TH185 — TH5 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine13.6 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power13.6 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Weight810 kgReference
Front tire6-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Length260 cmReference
Width104 cmReference
Height (ROPS)187 cmReference
Ground clearance28 cmReference
Front tread83 cmReference
Rear tread80/94 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH36Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
