Tractor · 2004Unverified

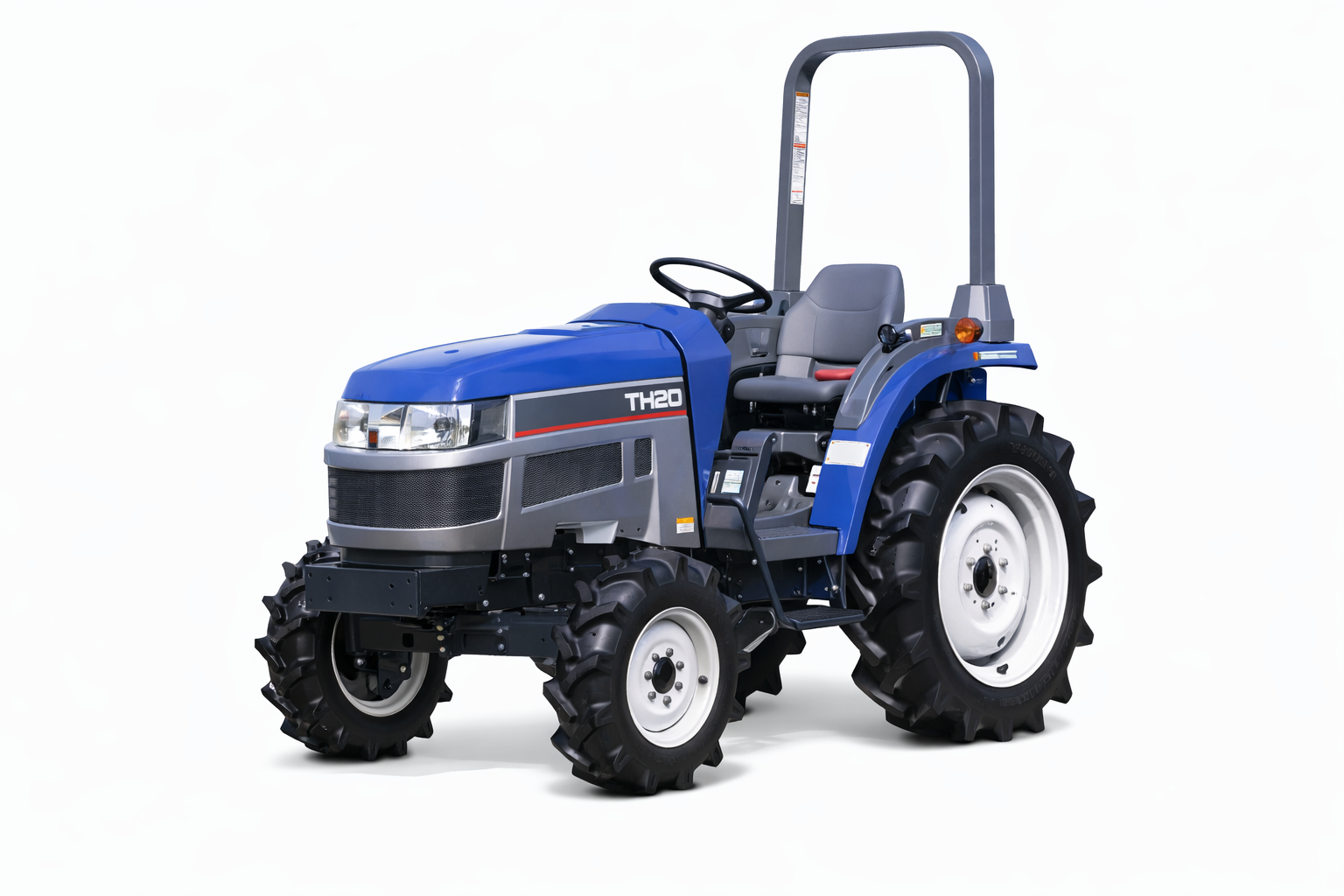

Iseki TH20
Iseki TH20 — TH Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.4L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.7 kWReference
Iseki E3CCReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Wheelbase145 cmReference
Weight810 kgReference
Front tire6.00-12Reference
Rear tire8.3-22Reference
Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference
Length268 cmReference
Width110 cmReference
Height (ROPS)186 cmReference
Ground clearance33 cmReference
Front tread88 cmReference
Rear tread85/100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
