Tractor · 2010Unverified

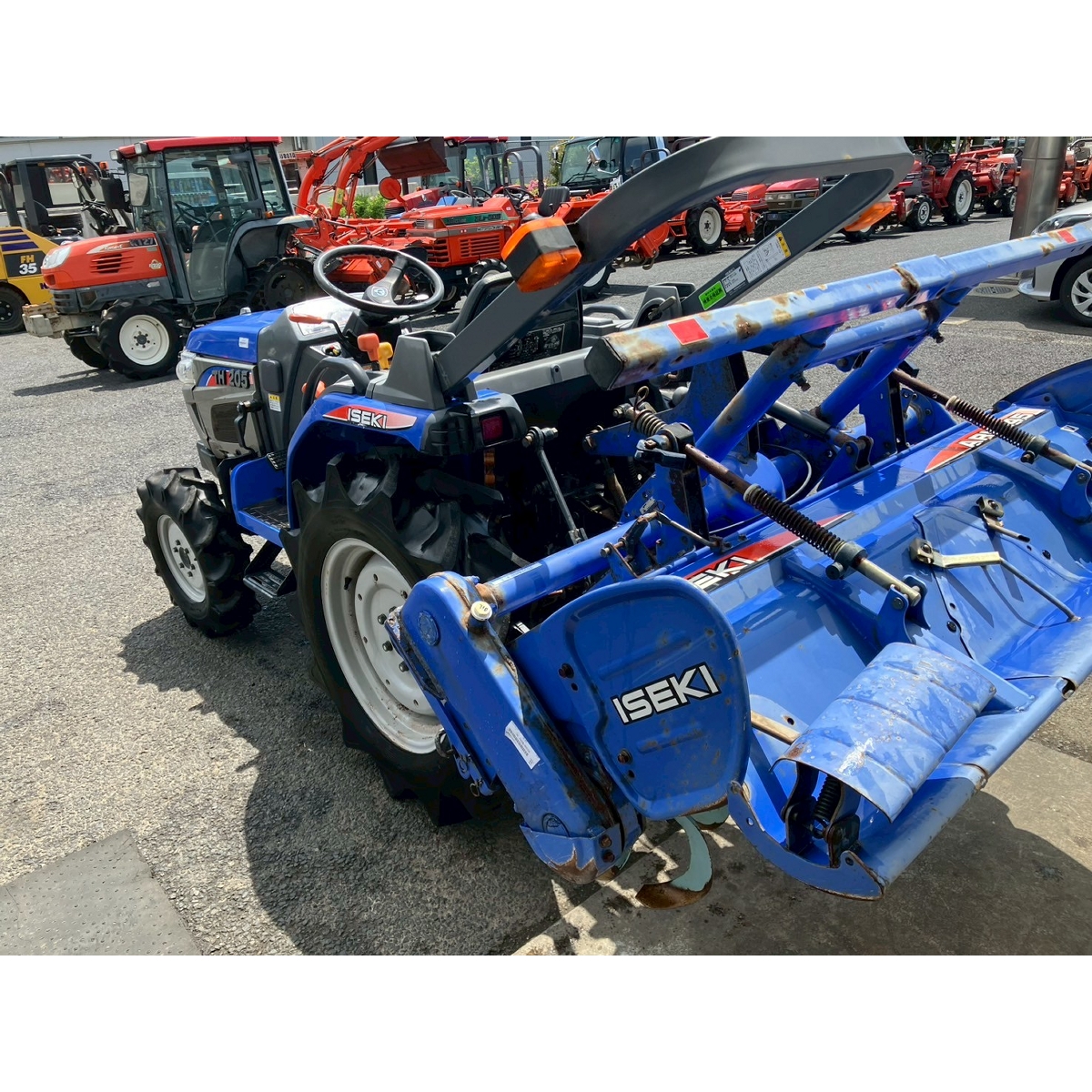

Iseki TH205
Iseki TH205 — TH5 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.7 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
24-speed partial power shiftReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
Eight power shift gears in three ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Weight810 kgReference
Front tire6.00-12Reference
Rear tire9.5-20Reference
Standard tires (ag)Front: 6.00-12. Rear: 9.5-20Reference
Length260 cmReference
Width110 cmReference
Height (ROPS)191 cmReference
Ground clearance30 cmReference
Front tread88 cmReference
Rear tread85/100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH36Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
