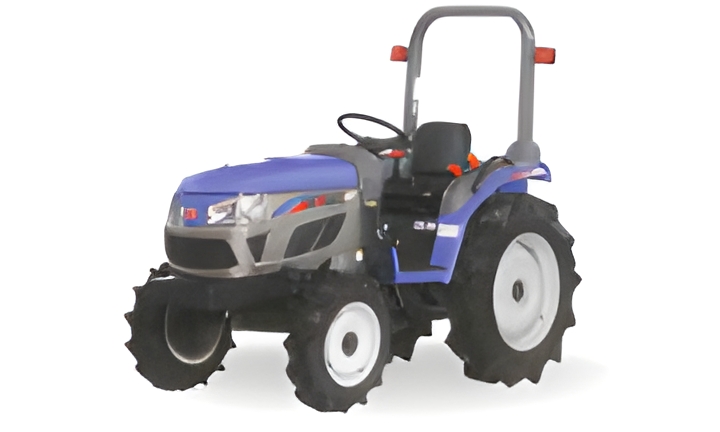

Iseki TH235
Iseki TH235 — TH5 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1973 to 2877 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine17.3 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power17.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
24-speed partial power shiftReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
Eight power shift gears in three ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Weight1973 to 2877 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
ROPS Length270 cmReference
Cab Length275 cmReference
Crawler Length289 cmReference
ROPS Width118 cmReference
Cab Width124 cmReference
Crawler Width143 cmReference
Height (ROPS)196 cmReference
Height (cab)194 cmReference
Ground clearance33 cmReference
Front tread96 cmReference
Rear tread88/103 cmReference
ROPS894 kgReference
Cab1085 kgReference
Crawler1305 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
