Tractor · 2004Unverified

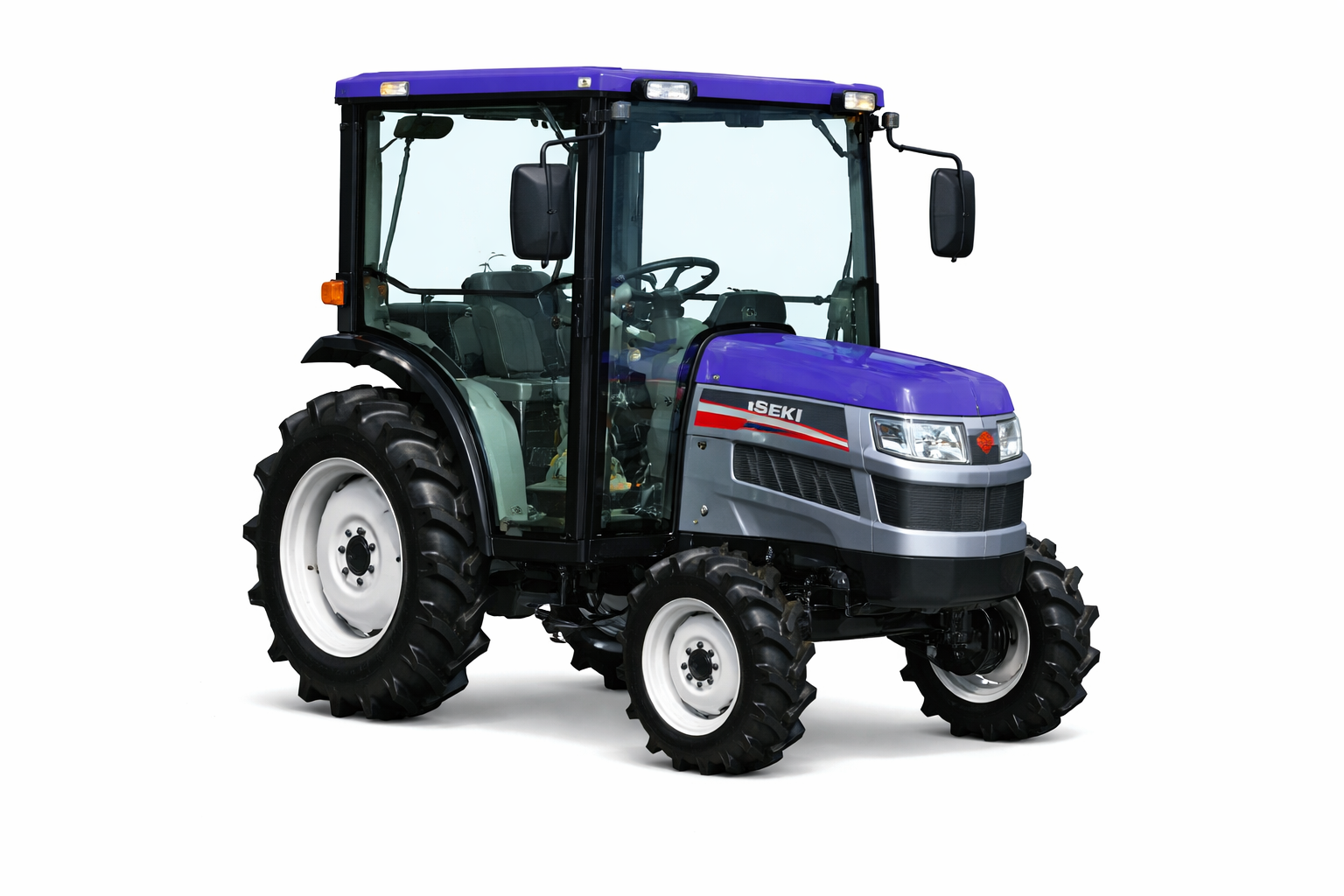

Iseki TH24
Iseki TH24 — TH Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1896 to 2348 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine17.7 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM829@2500Reference
Engine RPM1218@2500Reference
Dimensions
Wheelbase145 cmReference
Weight1896 to 2348 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
ROPS Length268 cmReference
Cab Length275 cmReference
ROPS Width118 cmReference
Cab Width124 cmReference
Height (ROPS)192 cmReference
ROPS Weight860 kgReference
Cab Weight1065 kgReference
Ground clearance34 cmReference
Front tread96 cmReference
Rear tread88/103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
