Tractor · 2010Unverified

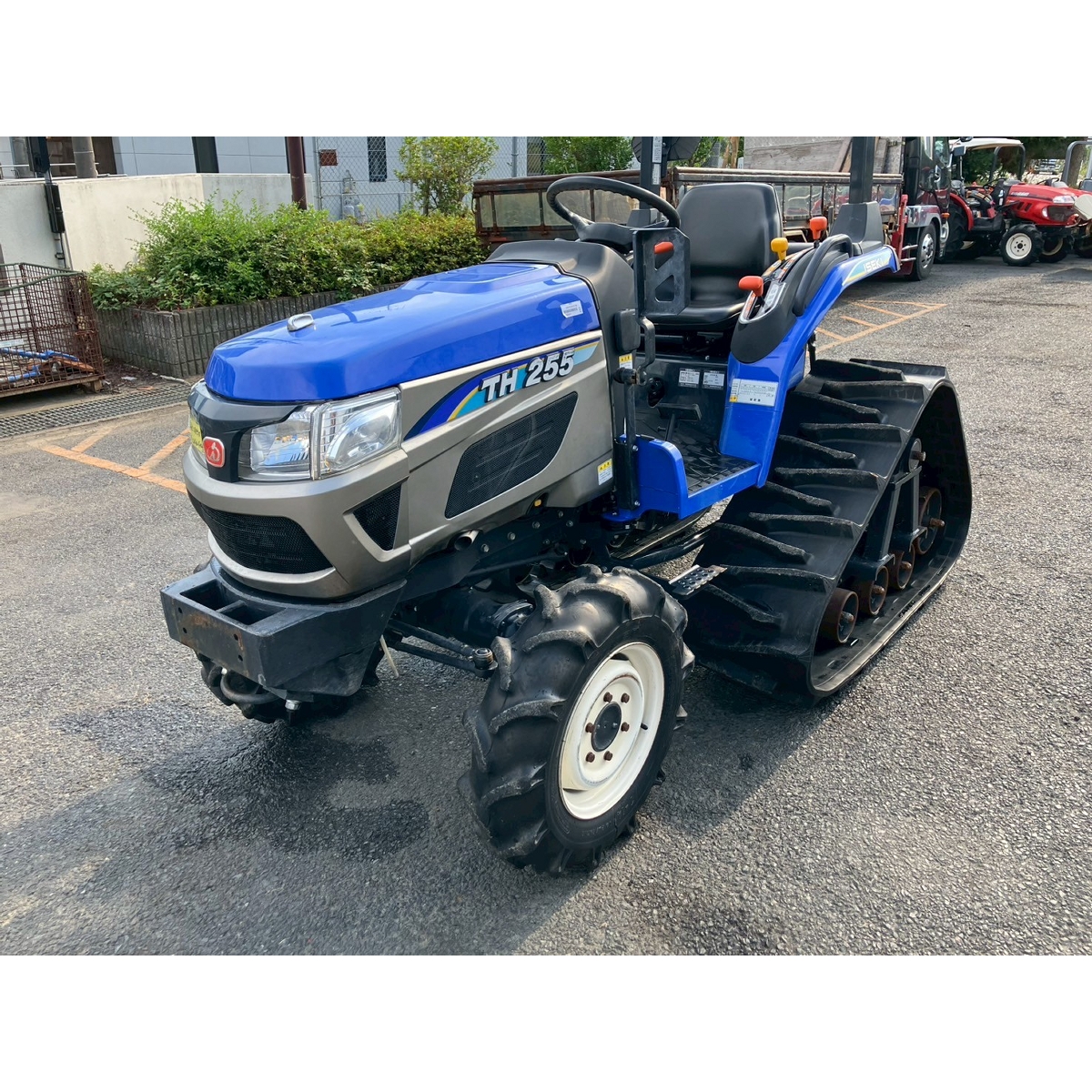

Iseki TH255

Name: Iseki TH255
Brand: Iseki

Iseki TH255 — TH5 Series · 25 hp. Reference specifications; pending source verification.

The Iseki TH255 is a compact tractor model rated at 25 hp. It was manufactured from 2010 to 2016. The TH255 is powered by a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. Its weight ranges from 1984 to 3296 pounds, suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1984 to 3296 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

25 hp

Transmissions

12-speed gear

Production years

2010-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine18.4 kWReference

Iseki E3CDReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

Power18.4 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

24-speed partial power shiftReference

TypegearReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears in three ranges with mechanical shuttle.Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Eight power shift gears in three ranges with power shuttle.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM523@2500Reference

Engine RPM783@2500Reference

Engine RPM1184@2500Reference

Dimensions

Weight1984 to 3296 poundsReference

Front tire7-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

ROPS Length270 cmReference

Cab Length275 cmReference

Crawler Length289 cmReference

ROPS Width118 cmReference

Cab Width124 cmReference

Crawler Width143 cmReference

Height (ROPS)199 cmReference

Height (cab)199 cmReference

Ground clearance34 cmReference

Front tread96 cmReference

Rear tread88/103 cmReference

ROPS899 kgReference

Cab1090 kgReference

Crawler1495 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Battery AH55Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
