Tractor · 2004Unverified

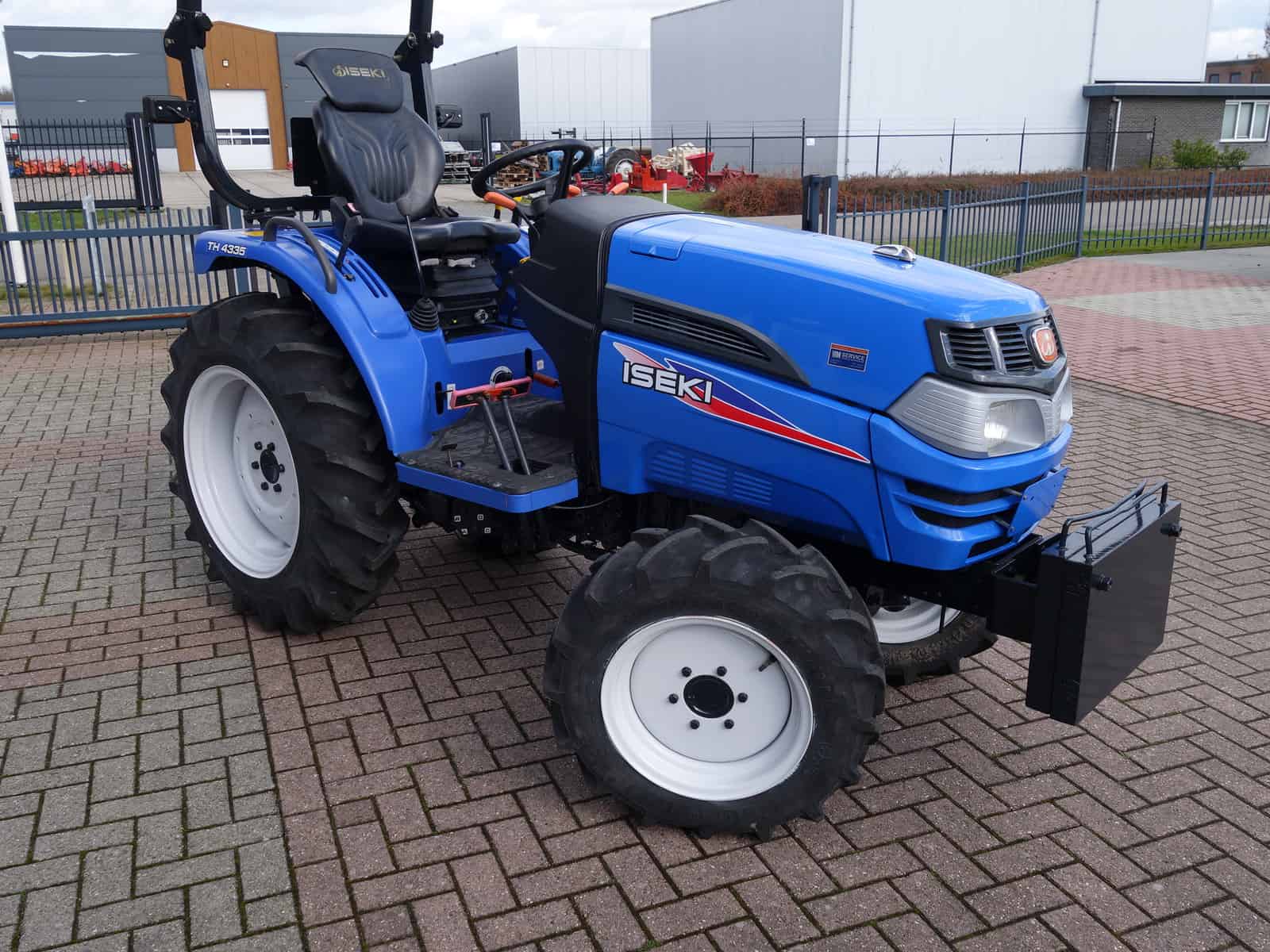

Iseki TH4290
Iseki TH4290 — TH Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2127 to 2172 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.6 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power20.6 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
Gear Width133 cmReference
Gear Weight964 kgReference
TypegearReference
Gears9 forward and 3 reverseReference
TransmissionhydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Total flow28.0 lpmReference
Rear Type1Reference
Rear lift (at ends)1099 kgReference
Hydro Rear PTOindependentReference
Clutchelectro-hydraulicReference
Gear Rear PTO Type540Reference
Hydro Rear PTO Type540/1000Reference
Engine RPM540@2324Reference
Engine RPM1000@2381Reference
Front PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight2127 to 2172 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Ag front7-14Reference
Ag rear9.5-24Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315/80D-16Reference
Lawn/turf front26x12.00-12Reference
Lawn/turf rear13.6-16Reference
Length292 cmReference
Hydro Width125 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)234 cmReference
Hydro Weight985 kgReference
Ground clearance19 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
