Tractor · 2004Unverified

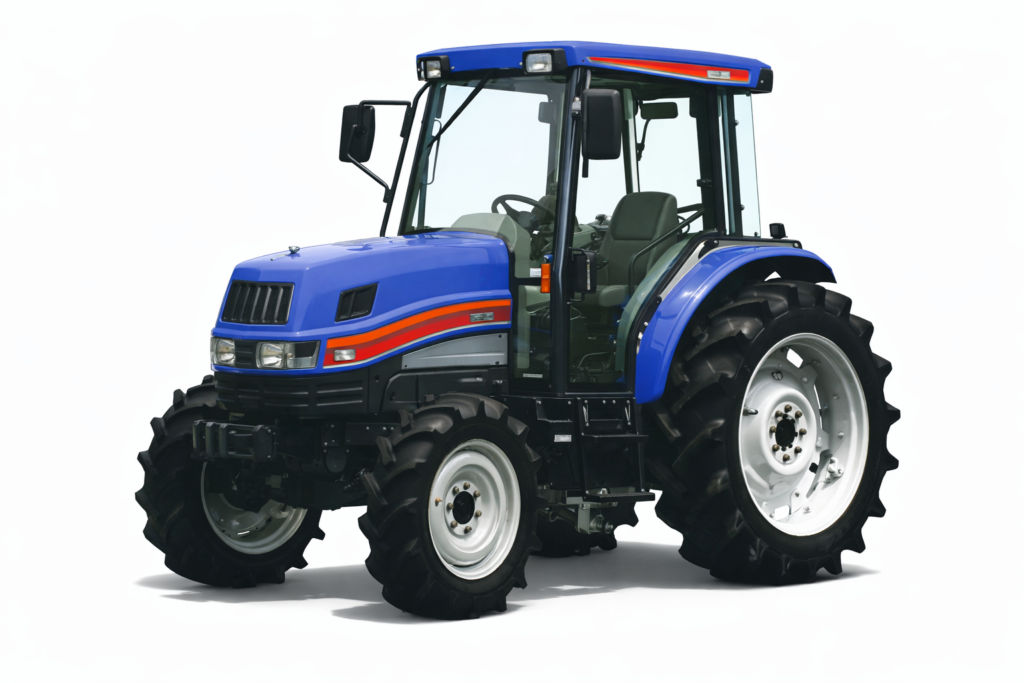

Iseki TJ55
Iseki TJ55 — TJ Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2360 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet discs brakesReference
Cab with air-conditioning.Reference
Variants
TJ55wheel tractorReference
TJ55Chalf-trackReference
Engine
Iseki 3.0L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine40.5 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power40.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed 8-speed power shiftReference
12-speed 4-speed power shiftReference
Type8-speed power shiftReference
Gears24 forward and reverseReference
Eight push-button power shift gears in three ranges with power shuttle. Automated AT shift mode.Reference
Type4-speed power shiftReference
Gears12 forward and reverseReference
Four push-button gears in three ranges with shuttle.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear TypeJIS2Reference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2600Reference
Engine RPM733@2600Reference
Engine RPM1062@2600Reference
Dimensions
Wheelbase215 cmReference
Weight2360 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Ag front8.3-20Reference
Ag rear12.4-32Reference
Length379 cmReference
Width154 cmReference
Height242 cmReference
Ground clearance42 cmReference
Front tread120 to 153 cmReference
Rear tread115 to 163 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH72Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
