Tractor · 2004Unverified

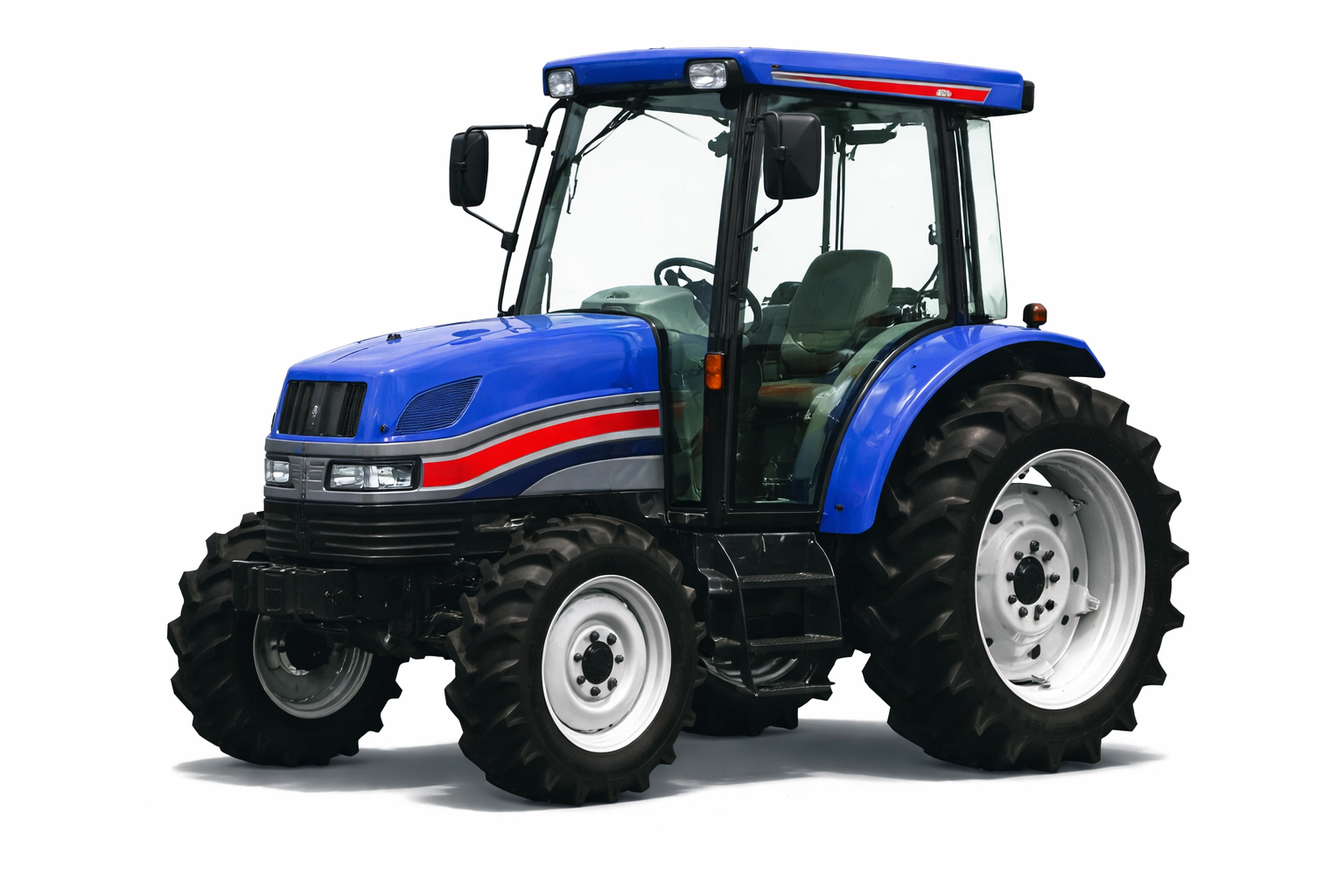

Iseki TJ65
Iseki TJ65 — TJ Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
2540 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet discs brakesReference
Cab with air-conditioning.Reference
Variants
TJ65wheel tractorReference
TJ65Chalf-trackReference
Engine
Iseki 3.0L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine47.8 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power47.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed 8-speed power shiftReference
Type8-speed power shiftReference
Gears24 forward and reverseReference
Eight push-button power shift gears in three ranges with power shuttle. Automated AT shift mode.Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear TypeJIS2Reference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2600Reference
Engine RPM733@2600Reference
Engine RPM1062@2600Reference
Dimensions
Wheelbase215 cmReference
Weight2540 kgReference
Front tire9.5-22Reference
Rear tire12.4-36Reference
Ag front9.5-22 6PRReference
Ag rear12.4-36 6PRReference
Length379 cmReference
Width167 cmReference
Height248 cmReference
Ground clearance42 cmReference
Front tread121 to 157 cmReference
Rear tread121 to 161 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH72Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
