Tractor · 2007Unverified

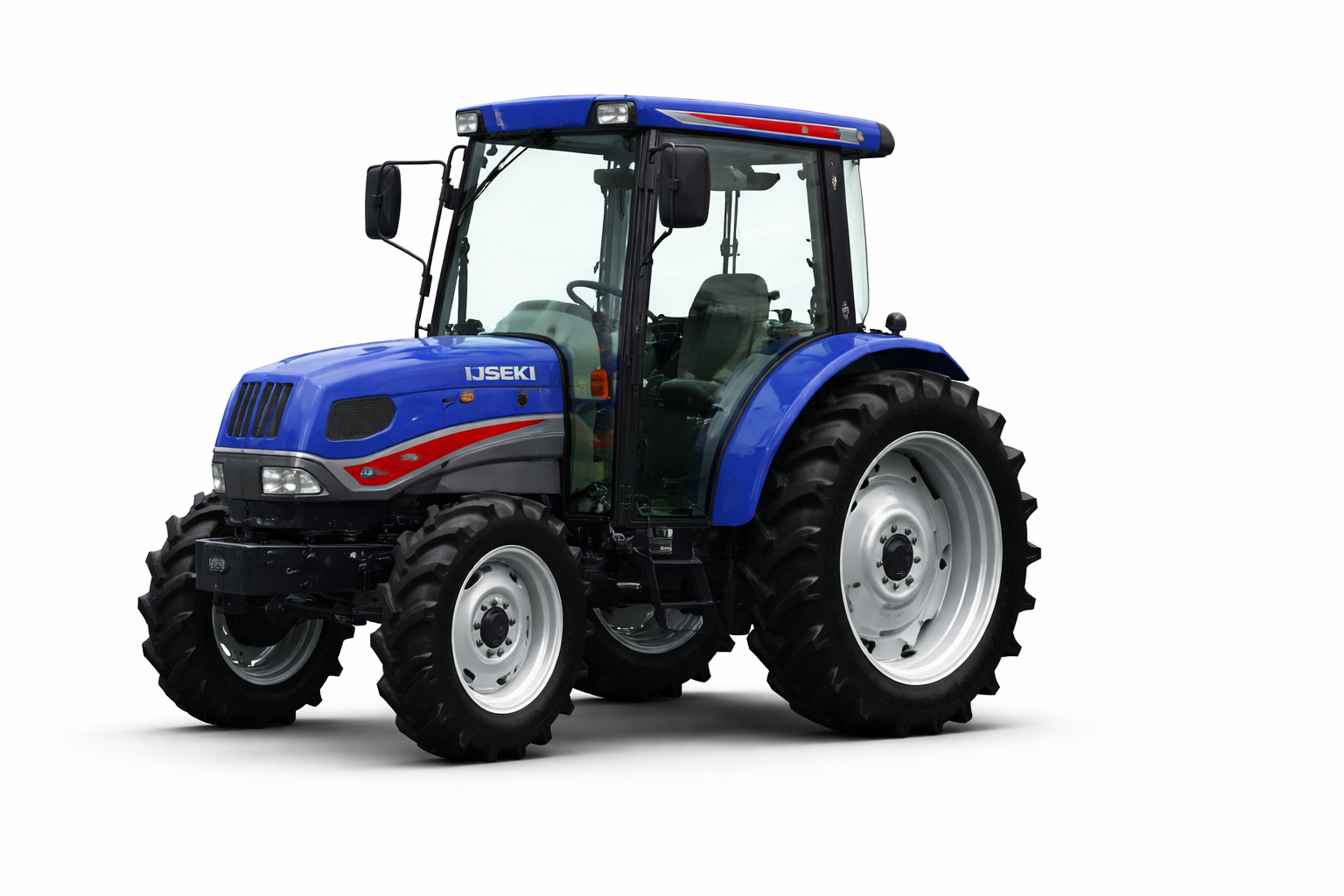

Iseki TJ85
Iseki TJ85 — TJ Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
2619 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet discs brakesReference
Cab with air-conditioning.Reference
Variants
TJ85wheel tractorReference
TJ85Chalf-trackReference
Engine
Iseki 3.4L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine62.5 kWReference
Iseki E4DGReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke97 x 114 mmReference
Power62.5 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed 8-speed power shiftReference
Type8-speed power shiftReference
Gears24 forward and reverseReference
Eight push-button power shift gears in three ranges with power shuttle. Automated AT shift mode.Reference
PTO & Hydraulics
Rear TypeJIS2Reference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2400Reference
Engine RPM732@2400Reference
Engine RPM1059@2400Reference
Dimensions
Wheelbase219 cmReference
Weight2619 kgReference
Front tire9.5-22Reference
Rear tire12.4-36Reference
Ag front9.5-22 6PRReference
Ag rear12.4-36 6PRReference
Length385 cmReference
Width167 cmReference
Height249 cmReference
Ground clearance42 cmReference
Front tread121 to 157 cmReference
Rear tread121 to 161 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH72Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
