Tractor · 2008Unverified

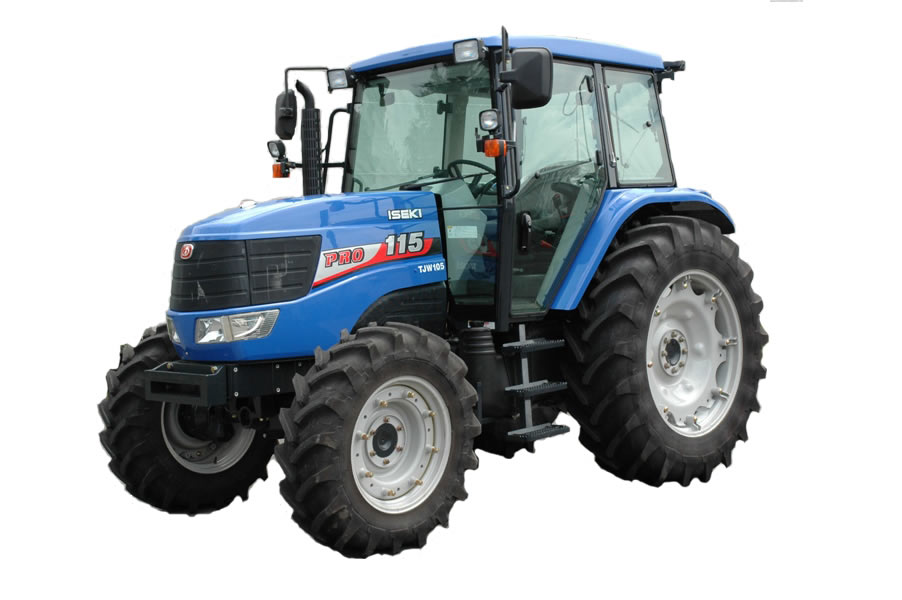

Iseki TJW105
Iseki TJW105 — Farm/Agricultural tractor · 112 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
112 hp
Weight
3915 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Farm/Agricultural tractorReference
Four-wheel driveReference
Differential lockautomatic standardReference
Steeringhydrostatic powerReference
Wet discs brakesReference
Cab with A/C standardReference
Engine
Iseki 4.4L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine83.5 kWReference
IsekiReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Power83.5 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
24-speedReference
TransmissionAT ShiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
Valves2 to 4Reference
Total flow65.9 lpmReference
Rear Type2Reference
Rear lift (at ends)3200 kgReference
Rear lift (at ends)4399 kgReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase240 cmReference
Weight3915 kgReference
Front tire11.2R24Reference
Rear tire16.9R34Reference
Ag front11.2R24Reference
Ag rear16.9R34Reference
Length414 cmReference
Width201 cmReference
Height265 cmReference
Ground clearance45 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
