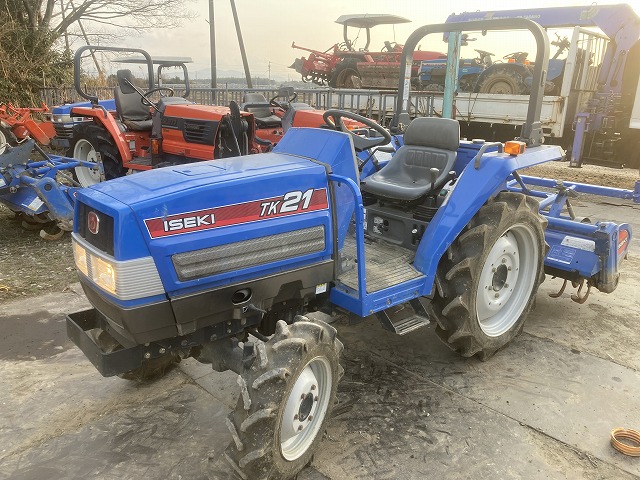

The Iseki TK21 is a compact tractor, rated at 25 hp, manufactured from 1996 to 2001. It features a 3-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with a 16-speed gearbox. The tractor has a listed weight of 1159 kg and is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1159 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
25 hp
Recorded weight
1159 kg
Transmissions
16-speed
Production years
1996-2001
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank21.2 LReference
Engine18.4 kWReference
Isuzu E3CEReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power18.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM824@2500Reference
Engine RPM1060@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase156 cmReference
Weight1159 kgReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
Length288 cmReference
Width130 cmReference
Height188 cmReference
Ground clearance26 cmReference
Front tread105 cmReference
Rear tread98 to 113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
