Tractor · 1996Unverified

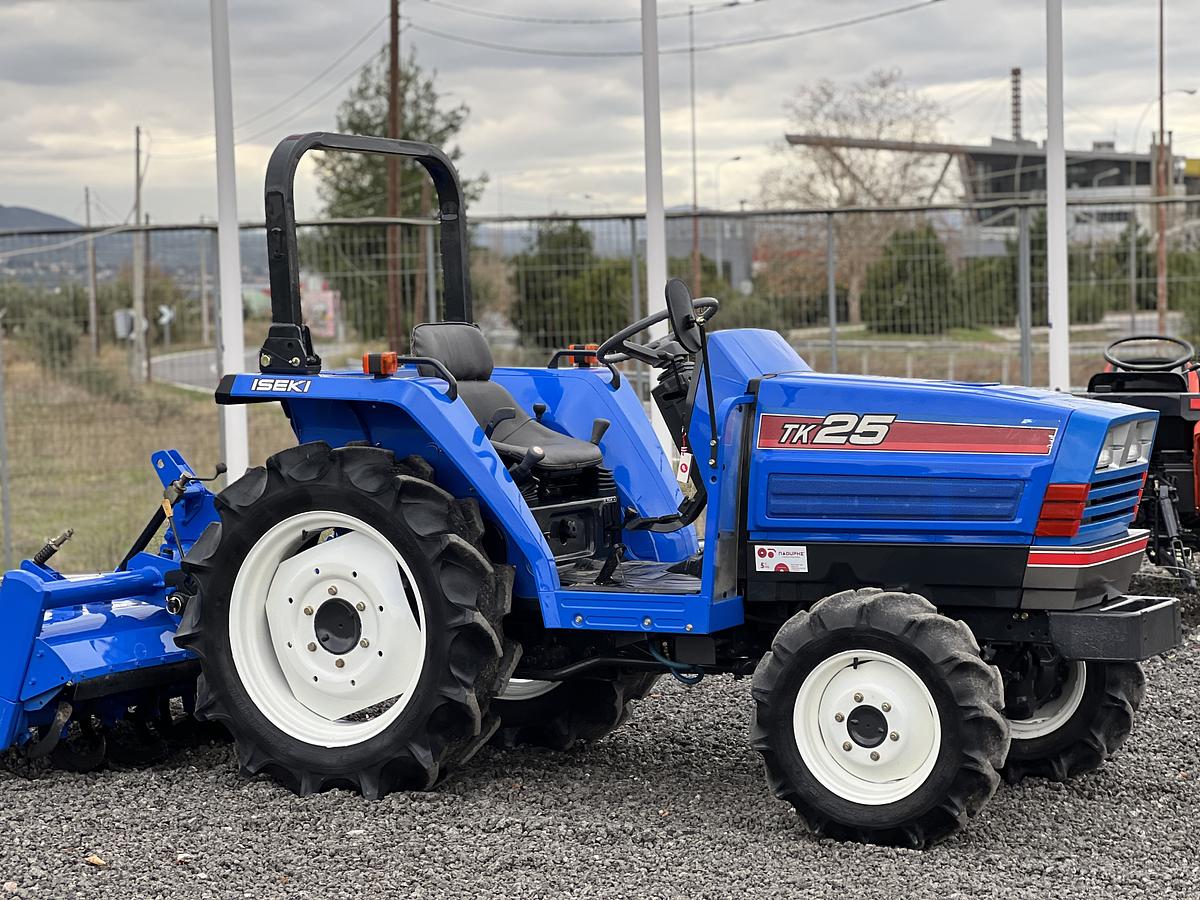

Iseki TK25
Iseki TK25 — TK Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2701 to 3031 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine18.4 kWReference
Isuzu E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power18.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM824@2500Reference
Engine RPM1060@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase164 cmReference
Weight2701 to 3031 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length298 cmReference
Width132 cmReference
Height192 cmReference
ROPS Weight1225 kgReference
Cab Weight1374 kgReference
Ground clearance29 cmReference
Front tread106 cmReference
Rear tread98/114 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
