Tractor · 1996Unverified

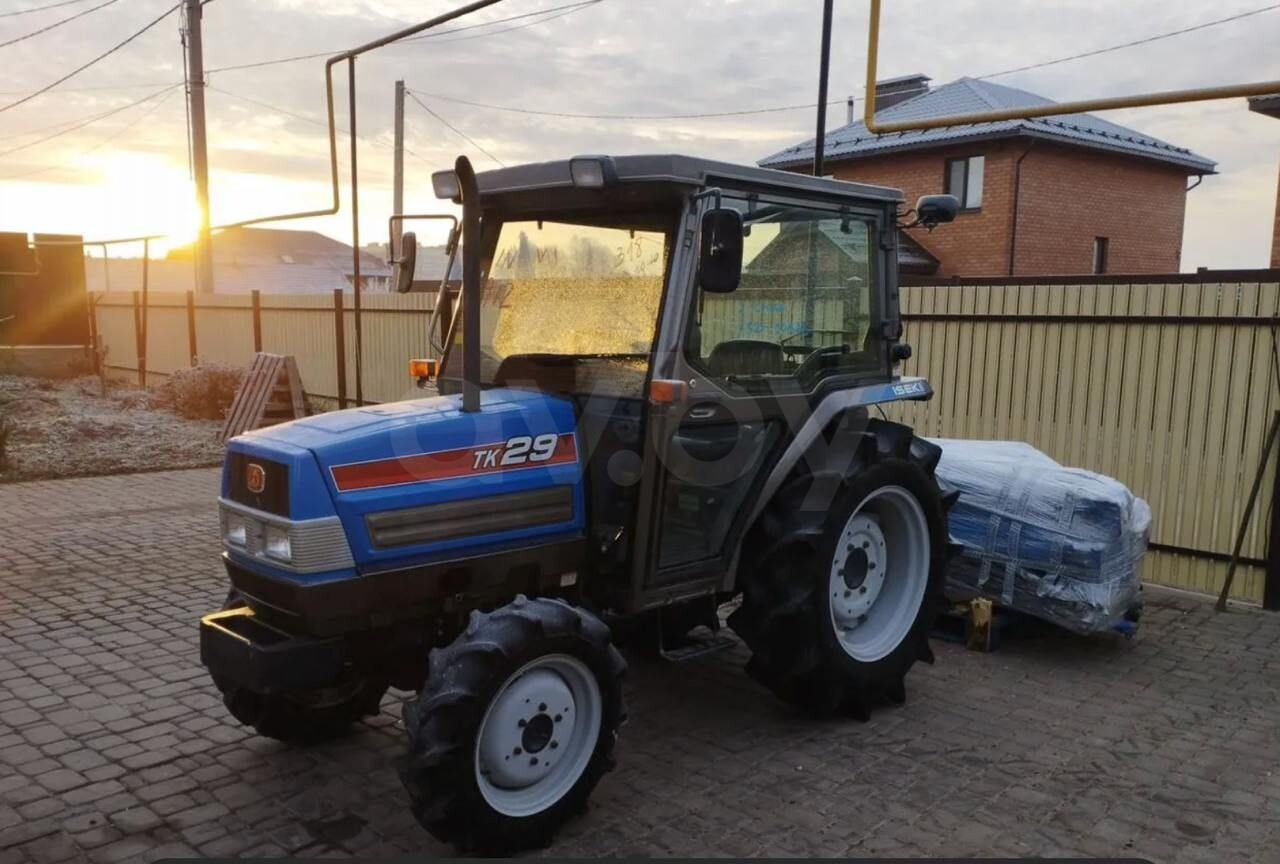

Iseki TK29
Iseki TK29 — TK Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
2877 to 3186 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine21.3 kWReference
Isuzu E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power21.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM573@2600Reference
Engine RPM833@2600Reference
Engine RPM1069@2600Reference
Engine RPM1252@2600Reference
Dimensions
Wheelbase164 cmReference
Weight2877 to 3186 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length298 cmReference
Width135 cmReference
Height197 cmReference
ROPS Weight1305 kgReference
Cab Weight1445 kgReference
Ground clearance32 cmReference
Front tread106 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
