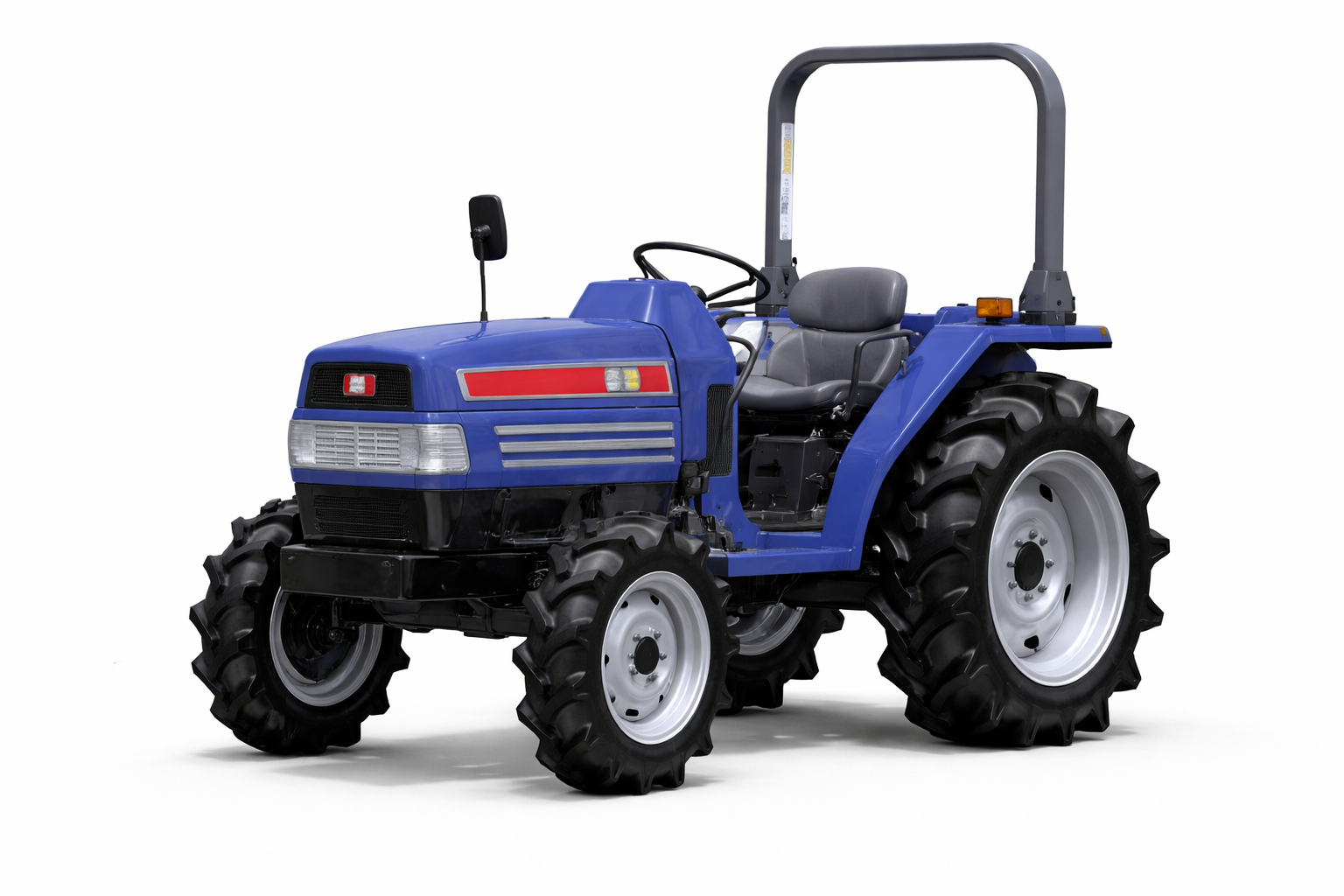

Iseki TK33
Iseki TK33 — TK Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
2910 to 3306 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine24.3 kWReference
Isuzu E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power24.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2800Reference
Engine RPM821@28001053@28001233@2800Reference
Dimensions
Wheelbase172 cmReference
Weight2910 to 3306 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length307 cmReference
Width143 cmReference
Height199 cmReference
ROPS Weight1319 kgReference
Cab Weight1499 kgReference
Ground clearance34 cmReference
Front tread113 cmReference
Rear tread109 to 141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
