Tractor · 1996Unverified

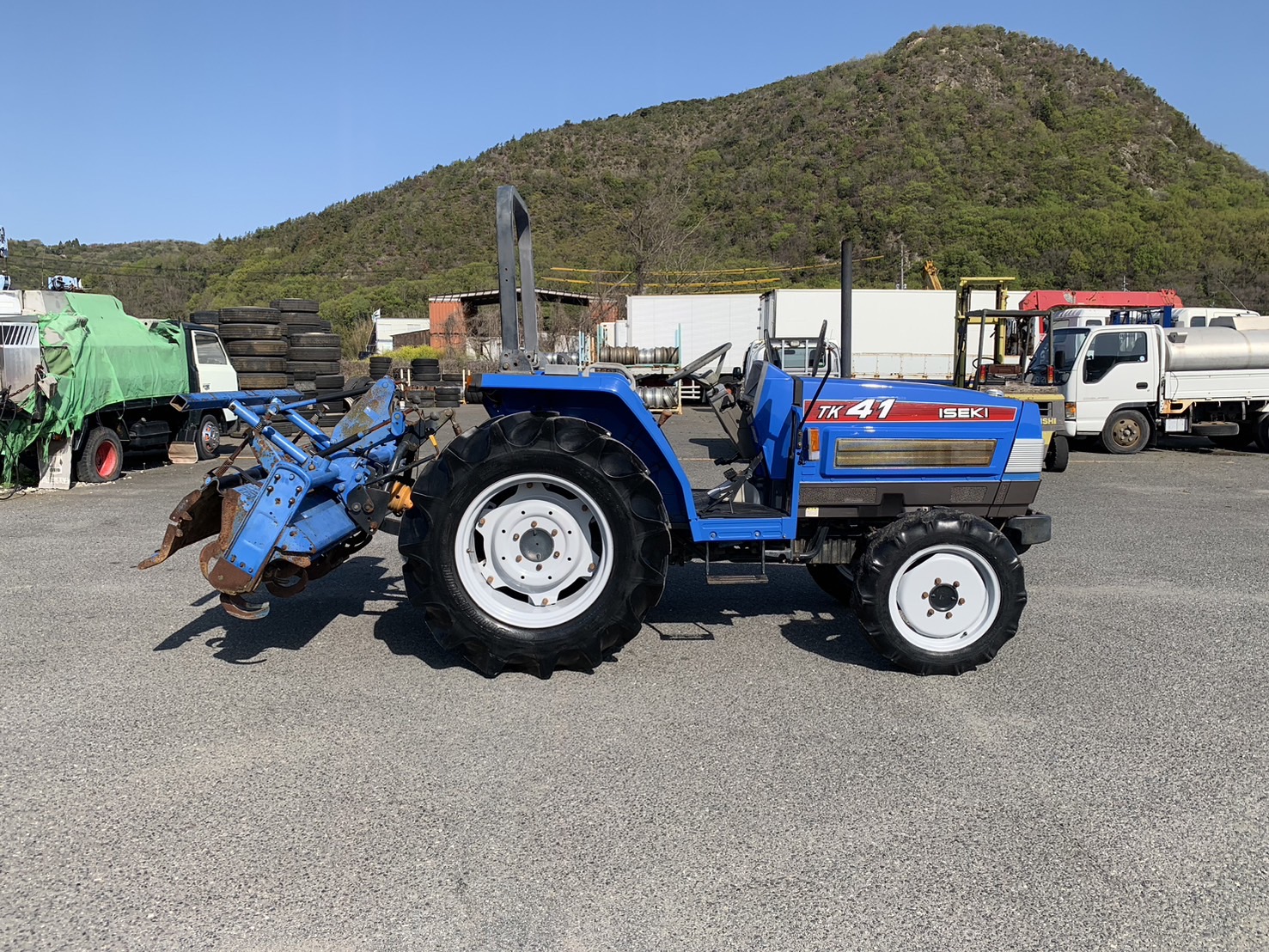

Iseki TK41
Iseki TK41 — TK Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
3759 to 4134 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Isuzu 2.2L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine30.1 kWReference
Isuzu E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power30.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM701@2500Reference
Engine RPM1016@2500Reference
Engine RPM1270@2500Reference
Dimensions
Wheelbase185 cmReference
Weight3759 to 4134 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length343 cmReference
Width152 cmReference
Height (ROPS)228 cmReference
Height (cab)227 cmReference
ROPS Weight1705 kgReference
Cab Weight1875 kgReference
Ground clearance35 cmReference
Front tread124 cmReference
Rear tread118 to 149 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH95Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
