Tractor · 1996Unverified

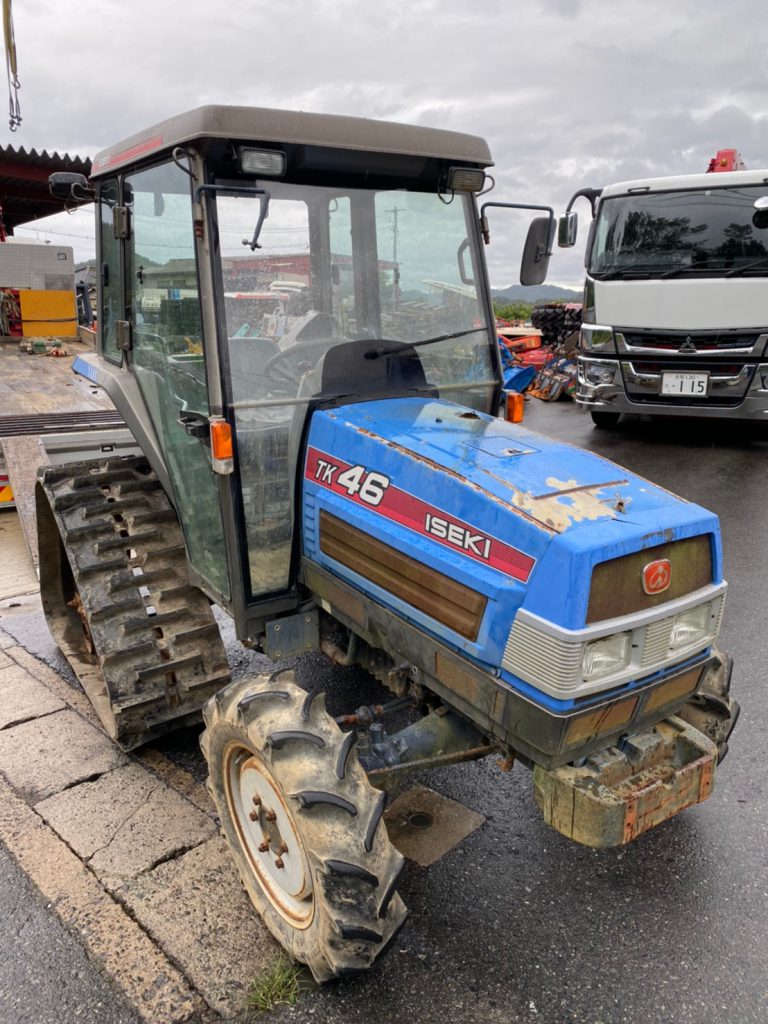

Iseki TK46
Iseki TK46 — TK Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3869 to 4244 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS. Cab optional.Reference
Engine
Isuzu 2.2L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine33.9 kWReference
Isuzu E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power33.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM587@2600Reference
Engine RPM729@2600Reference
Engine RPM1057@2600Reference
Engine RPM1321@2600Reference
Dimensions
Wheelbase185 cmReference
Weight3869 to 4244 poundsReference
Front tire8-18Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-28Reference
Length343 cmReference
Width152 cmReference
Height (ROPS)230 cmReference
Height (cab)230 cmReference
ROPS Weight1754 kgReference
Cab Weight1925 kgReference
Ground clearance35 cmReference
Front tread124 cmReference
Rear tread116 to 147 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH95Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
