Tractor · 1998Unverified

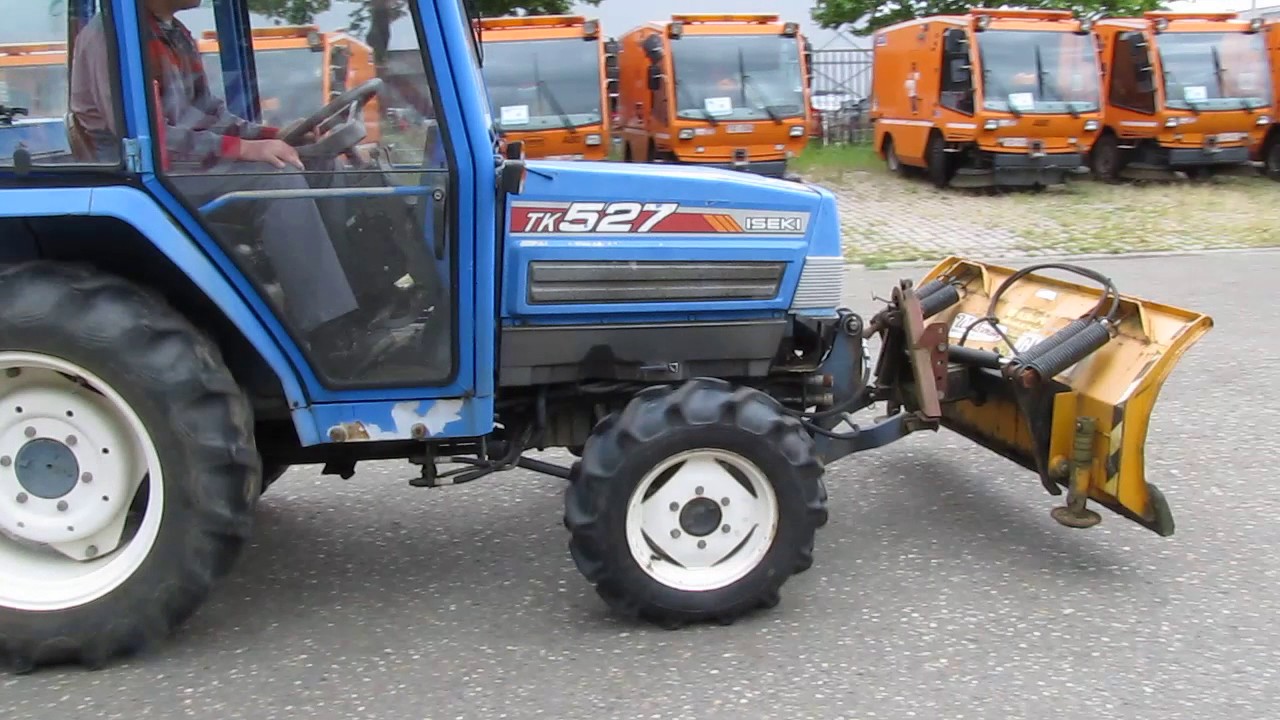

Iseki TK527
Iseki TK527 — TK Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1220 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Open operator station. Cab available.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)21.6 kWReference
Engine (net)19.8 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power (net)19.8 kWReference
Power (gross)21.6 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Total flow35.6 lpmReference
Rear TypeIReference
Controlposition control with available draft controlReference
Rear lift (at ends)1300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1220 kgReference
Length293 cmReference
Width131 cmReference
Ground clearance29 cmReference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
