Tractor · 2001Unverified

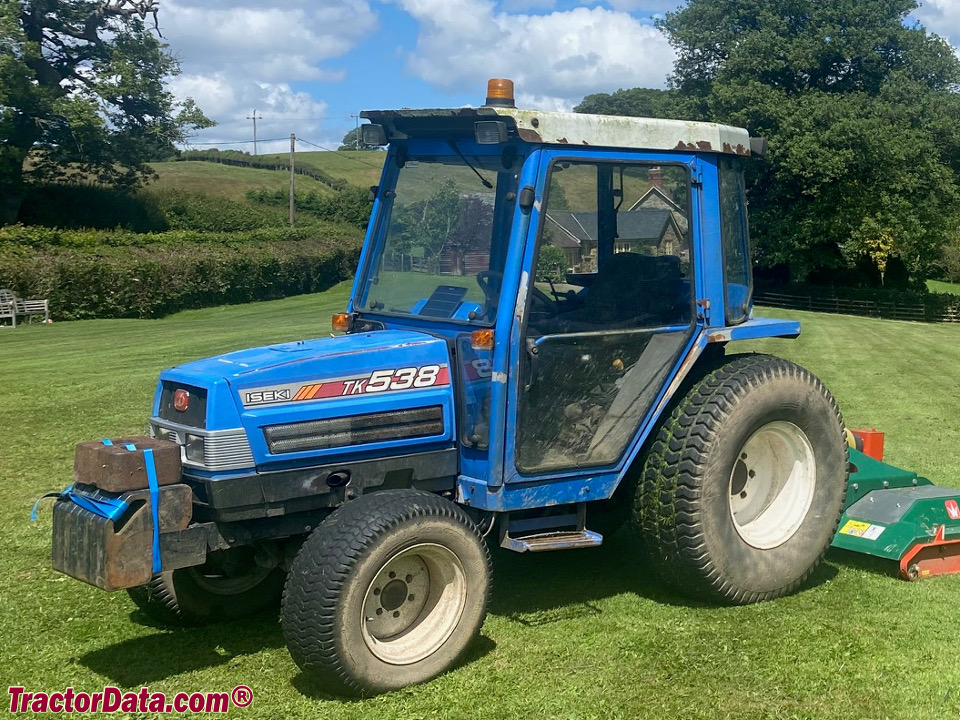

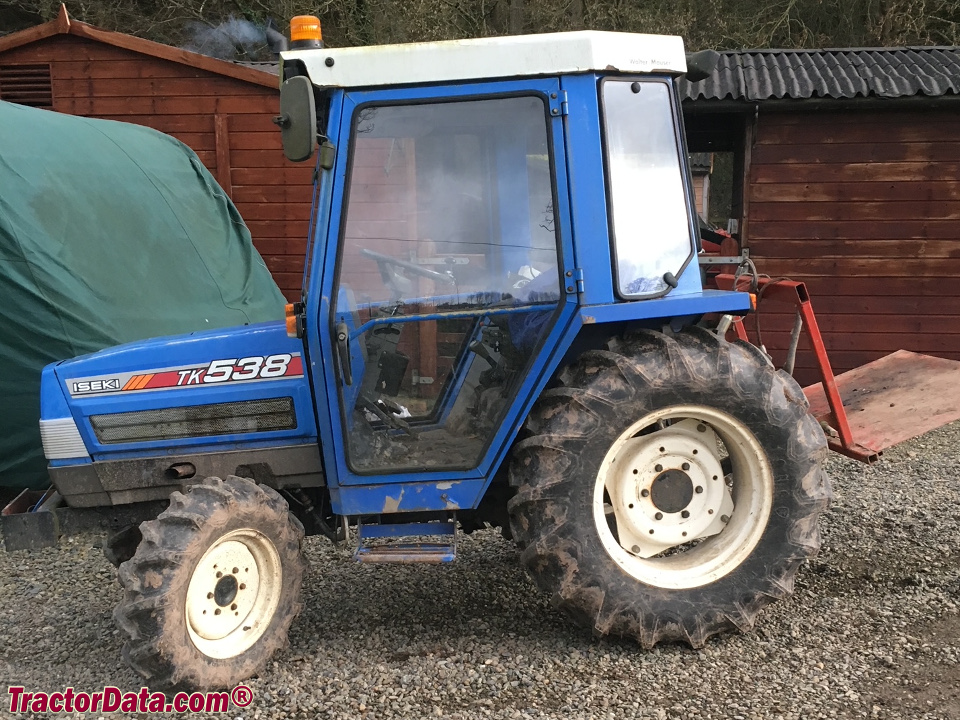

Iseki TK538
Iseki TK538 — TK Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
1215 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringpower assistReference
Mechanical wet disc brakesReference
Open operator station. Cab available.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Engine (gross)30.2 kWReference
Engine (net)28.0 kWReference
Iseki E3CDReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power (net)28.0 kWReference
Power (gross)30.2 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
16-speed mechanical shuttleReference
hydrostaticReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Oil capacity25.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Capacities
Fuel29.9 LReference
Steering0.3 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure132.1 barReference
Total flow36.7 lpmReference
Steering flow22.7 lpmReference
Steering cap.0.3 LReference
Rear TypeIReference
Controlposition control with available draft controlReference
Rear lift (at ends)1300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase172 cmReference
Weight1215 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Ag front7x16Reference
Ag rear12.4x24Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear475/65D-20Reference
Length302 cmReference
Width135 cmReference
Height (steering wheel)145 cmReference
Shipping weight1215 kgReference
Ground clearance30 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH65Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
