Tractor · 2006Unverified

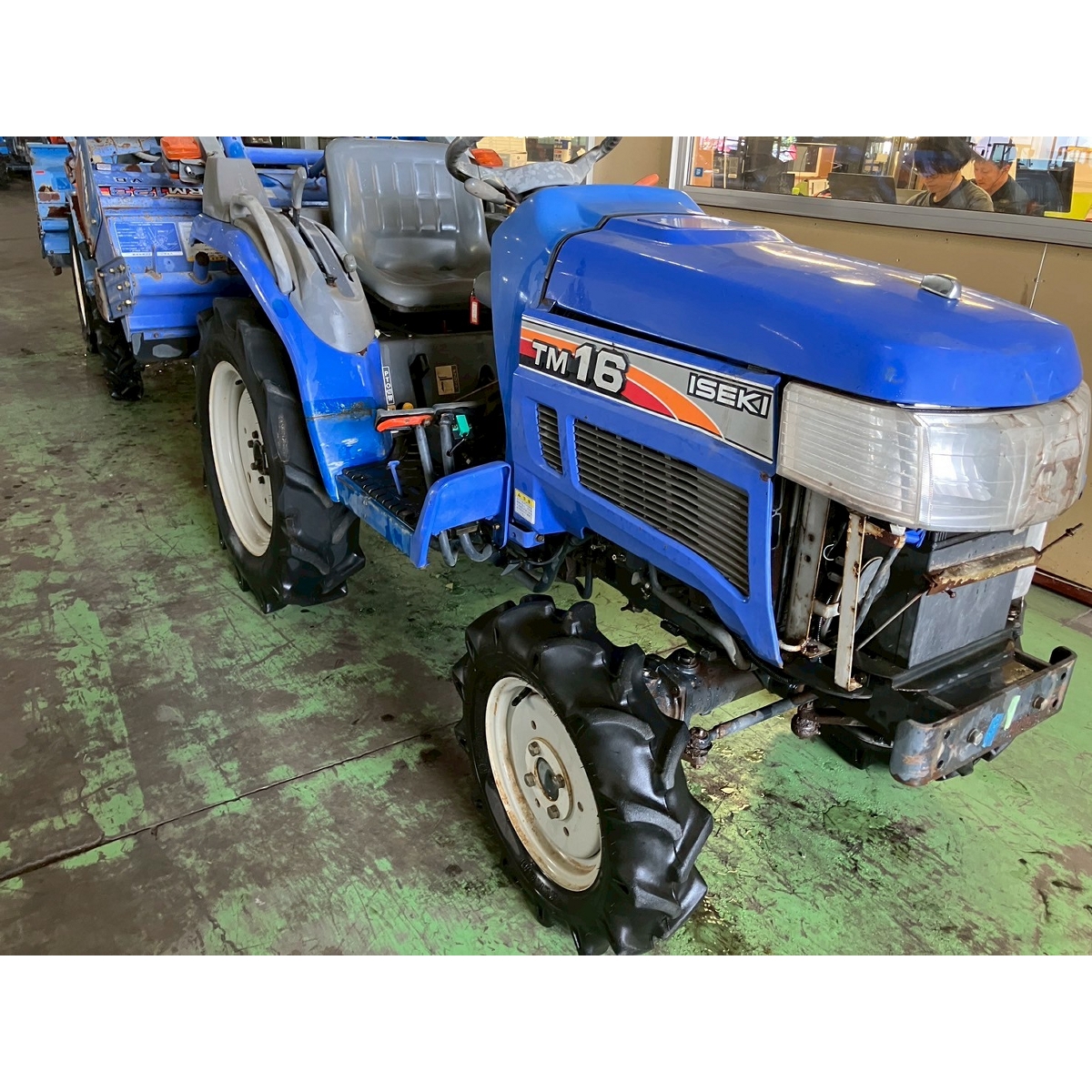

Iseki TM16
Iseki TM16 — TM Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
664 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine11.9 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power11.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
9-speed creeperReference
TypegearReference
Gears6 forward and reverseReference
Clutchdry discReference
TypecreeperReference
Gears9 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase134 cmReference
Weight664 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Length220 cmReference
Width103 cmReference
Height183 cmReference
Ground clearance29 cmReference
Front tread78 cmReference
Rear tread82 to 92 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
