Tractor · 1995Unverified

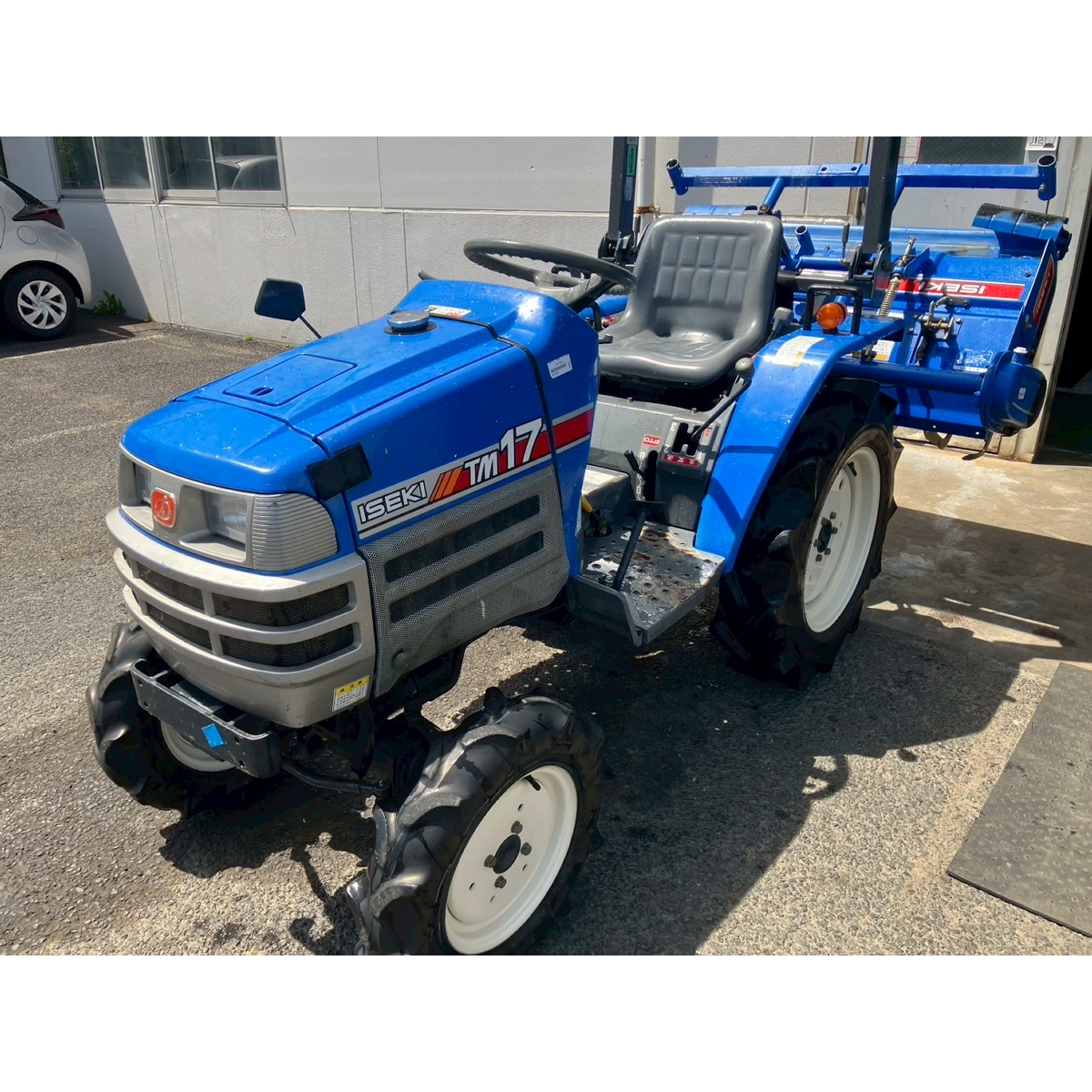

Iseki TM17
Iseki TM17 — TM Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
580 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank13.6 LReference
Engine12.1 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)10.8 kWReference
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM450@2500Reference
Engine RPM696@2500Reference
Engine RPM1140@2500Reference
Dimensions
Wheelbase132 cmReference
Weight580 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length202 cmReference
Width105 cmReference
Height196 cmReference
Ground clearance28 cmReference
Front tread78 cmReference
Rear tread82/92 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
