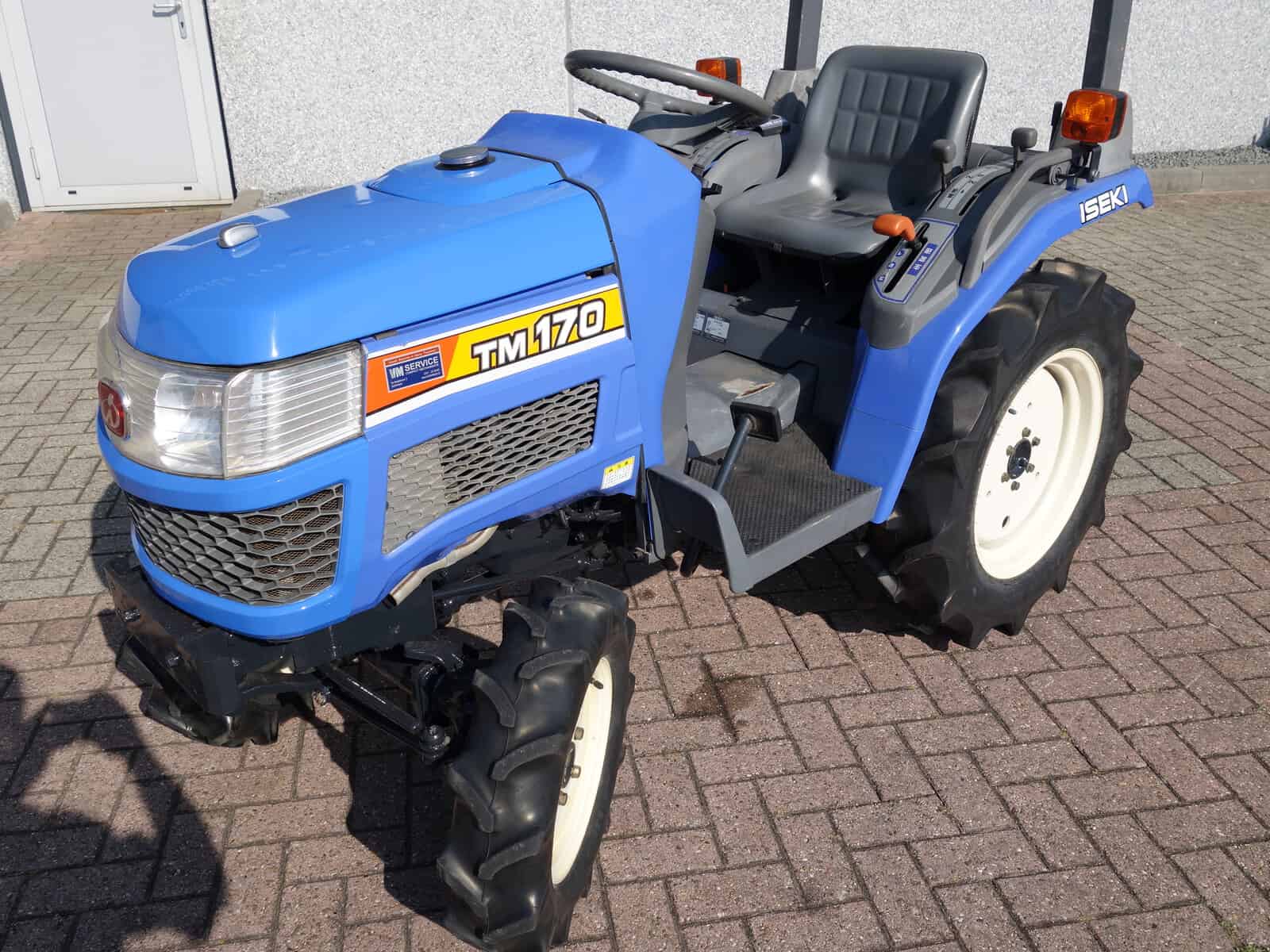

The Iseki TM170 is a tractor model with an approximate power rating of 17 hp, positioning it at the lower end of its class in terms of engine power. It was manufactured from 2002 to 2005. The tractor features a 3-cylinder liquid-cooled diesel engine, combined with four-wheel drive and a 6-speed gearbox. Its listed operating weight is 590 kg, and it is suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
590 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
17 hp
Recorded weight
590 kg
Transmissions
6-speed gear
Production years
2002-2005
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank13.6 LReference
Engine12.7 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase130 cmReference
Weight590 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Length207 cmReference
Width99 cmReference
Height187 cmReference
Ground clearance29 cmReference
Front tread78 cmReference
Rear tread80 to 90 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
