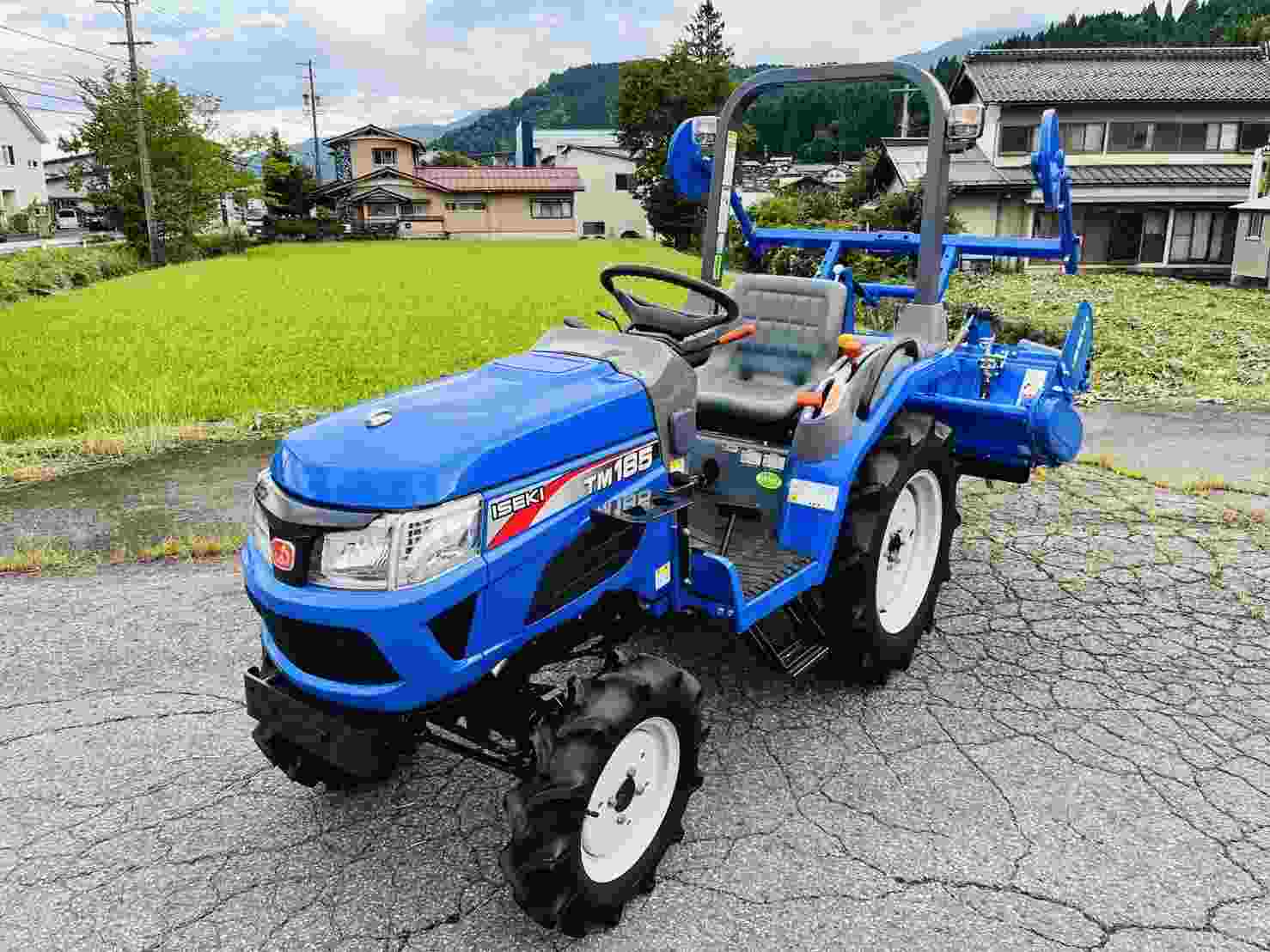

The Iseki TM185 is a 19 hp tractor, positioned within the lighter end of its class. It was manufactured in 2013. Key features include a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 6-speed gearbox. Its operating weight is 669 kg, with a capability of supporting operations up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
669 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
19 hp
Recorded weight
669 kg
Transmissions
6-speed gear
Production years
2013-2013
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine13.8 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power13.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
9-speed creeperReference
TypegearReference
Gears6 forward and reverseReference
Clutchdry discReference
TypecreeperReference
Gears9 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Clutchdry discReference
Rear PTO Type540/750/1000 (1.375)Reference
Dimensions
Wheelbase134 cmReference
Weight669 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Length220 cmReference
Width102 cmReference
Height183 cmReference
Ground clearance25 cmReference
Front tread78 cmReference
Rear tread82 to 92 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
