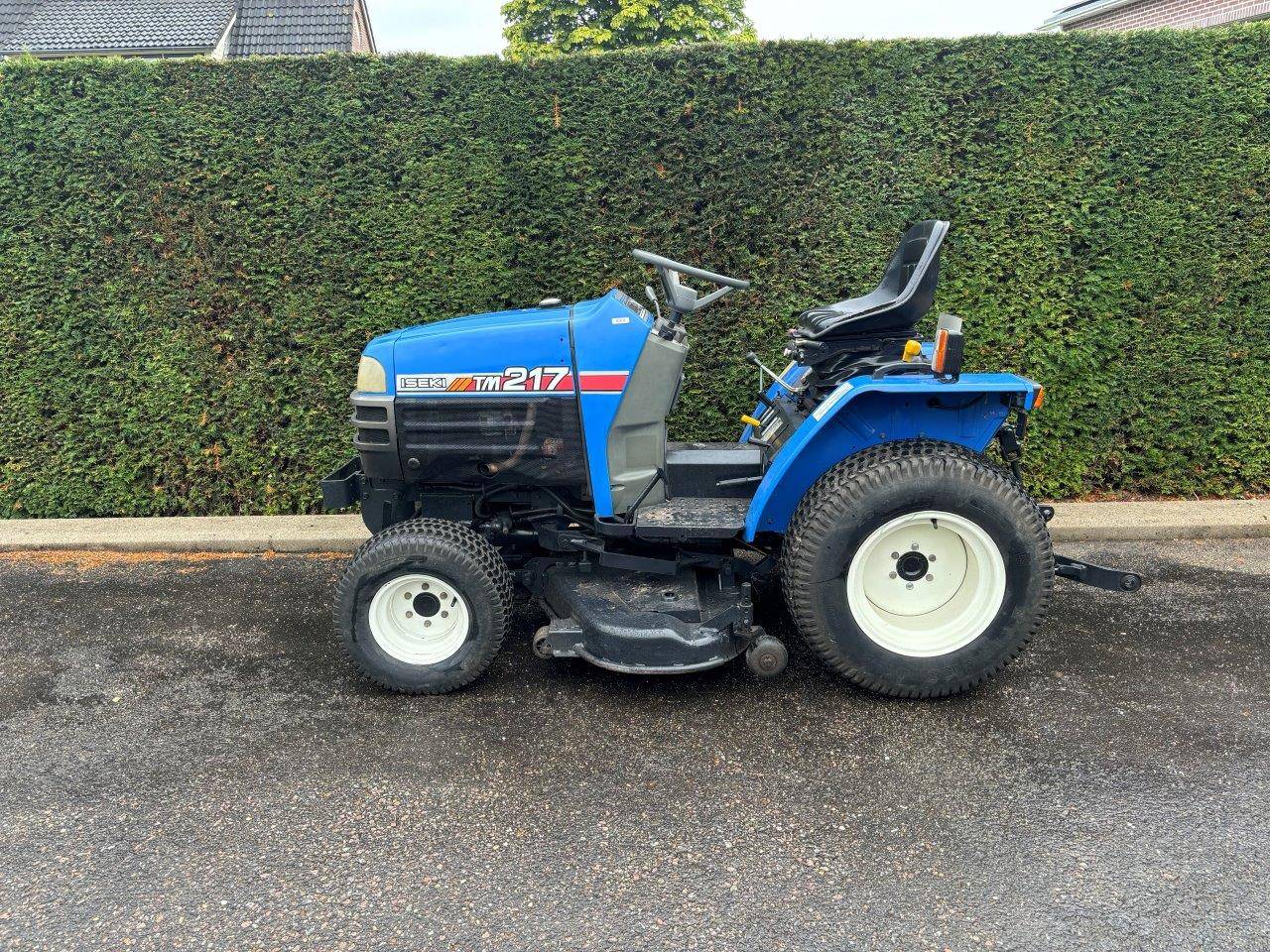

Iseki TM217
Iseki TM217 — ???? - 2004 TM SeriesCompact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
610 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential mechanical dry shoe brakesReference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank13.6 LReference
Engine12.7 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power12.7 kWReference
Air cleanerdry elementReference
Compression22.5:1Reference
Rated RPM2500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity5.1 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Transmission
6-speed unsynchronizedReference
hydrostaticReference
TypeunsynchronizedReference
Gears6 forward and 2 reverseReference
Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity15.0 LReference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
PTO (claimed)10.4 kWReference
Typeopen centerReference
Pressure137.3 barReference
Total flow18.2 lpmReference
Steering flow5.7 lpmReference
Rear TypeIReference
Rear lift (at ends)479 kgReference
Rear PTOcontinuousReference
Rear PTO Type540/1000Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase142 cmReference
Weight610 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Lawn/turf front20.5x8.00-12Reference
Lawn/turf rear29x12.00-15Reference
Length221 cmReference
Width119 cmReference
Height (steering wheel)130 cmReference
Ground clearance24 cmReference
610 kgReference
Max front axle650 kgReference
Max rear axle749 kgReference
Iseki TM217 attachments
51.2" front-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
42.1" rear-mount mower deckReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA325Reference
Battery volts12Reference
Attachment overview
51.2" front-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
42.1" rear-mount mower deckReference
Capacities
Max capacity1399 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
