Tractor · 2004Unverified

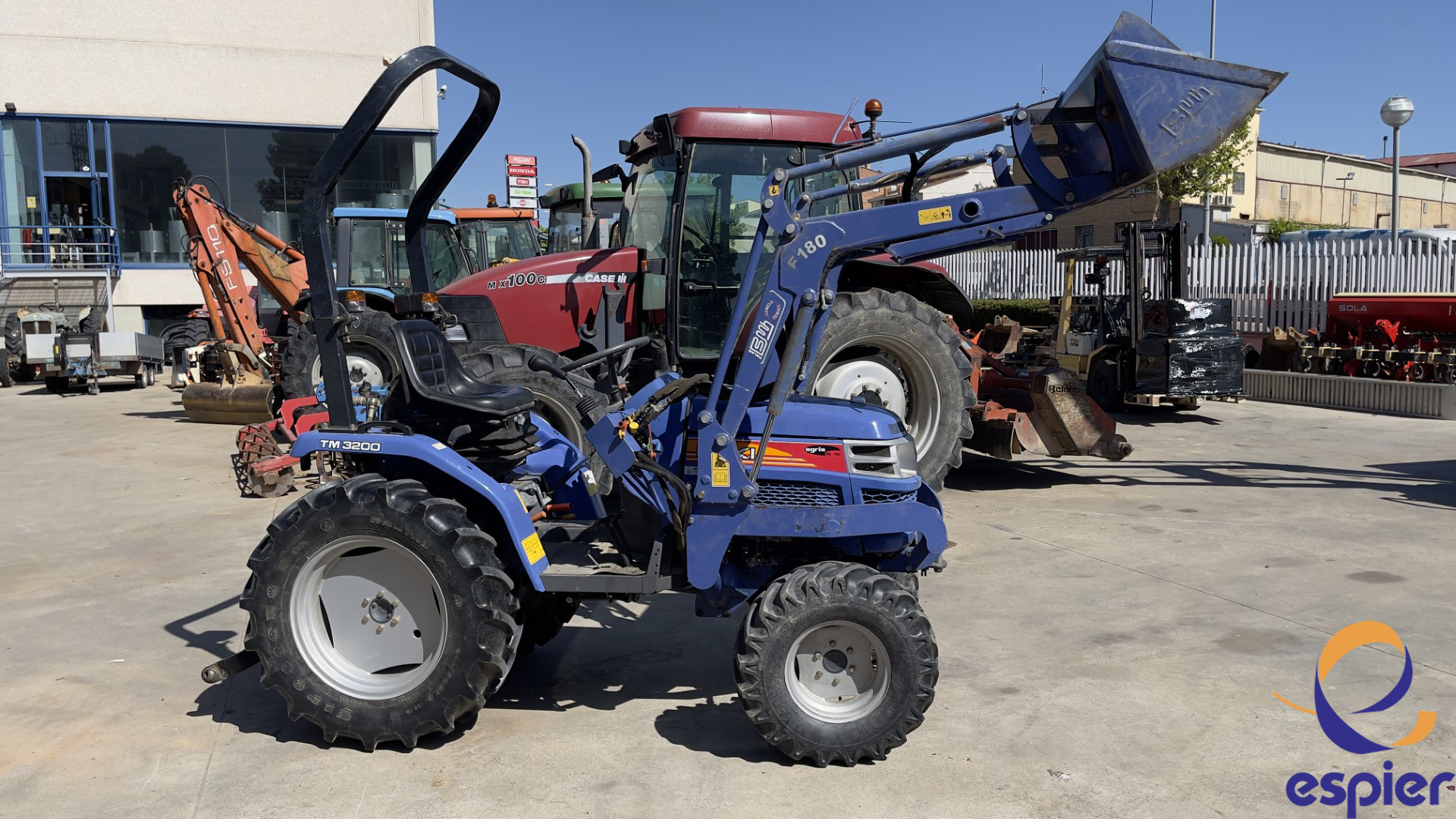

Iseki TM3200
Iseki TM3200 — TM Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1433 to 1477 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
ROPSReference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine14.3 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power14.3 kWReference
Fuel systemindirect injectionReference
Air cleanerdry elementReference
Compression22.5:1Reference
Rated RPM2500Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity7.1 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Transmission
6-speed gearReference
hydrostaticReference
Gear Ground clearance27 cmReference
Gear650 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity14.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
Pressure137.4 barReference
Total flow19.7 lpmReference
Steering flow9.8 lpmReference
Steering press.103.0 barReference
Rear TypeIReference
Rear lift (at ends)539 kgReference
Rear PTO Type540 (1.375)Reference
Gear Engine RPM546@2500Reference
Hydro Engine RPM565@2500Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase151 cmReference
Weight1433 to 1477 poundsReference
Front tire5.00-12Reference
Rear tire8-18Reference
Ag front5.00-12Reference
Ag rear8-18Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length267 cmReference
Width120 cmReference
Height (steering wheel)127 cmReference
Height (ROPS)228 cmReference
Hydro Ground clearance24 cmReference
Hydro669 kgReference
Max front axle650 kgReference
Max rear axle749 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA435Reference
Battery volts12Reference
Capacities
Max capacity1399 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
